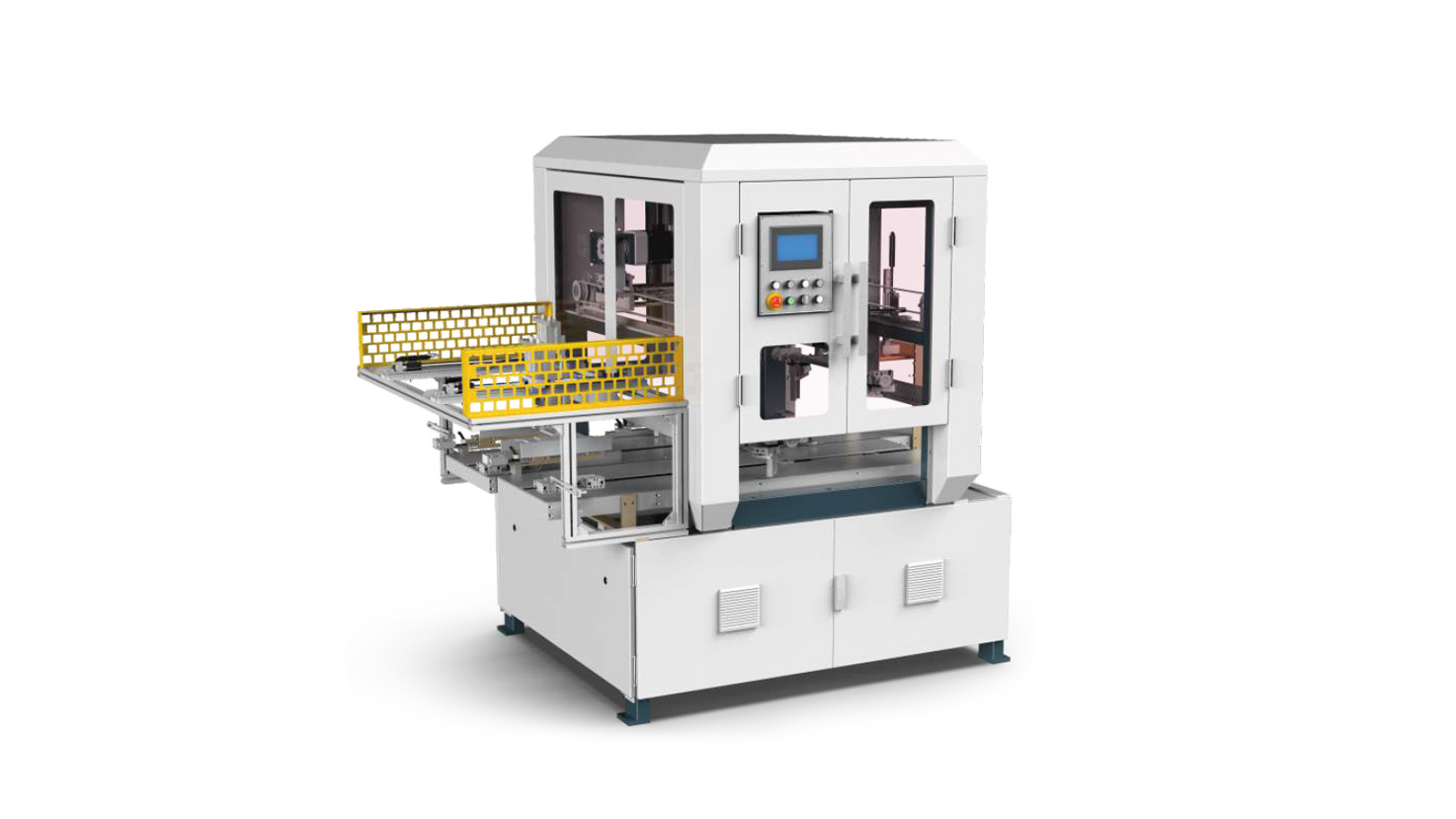

HM-GH43 Cover Box Machine
Functional description:
HM-GH43 Cover Box Machine is an automatic equipment for the production of
cover box process of various top boxes and bottom boxes in automatic production
lines.

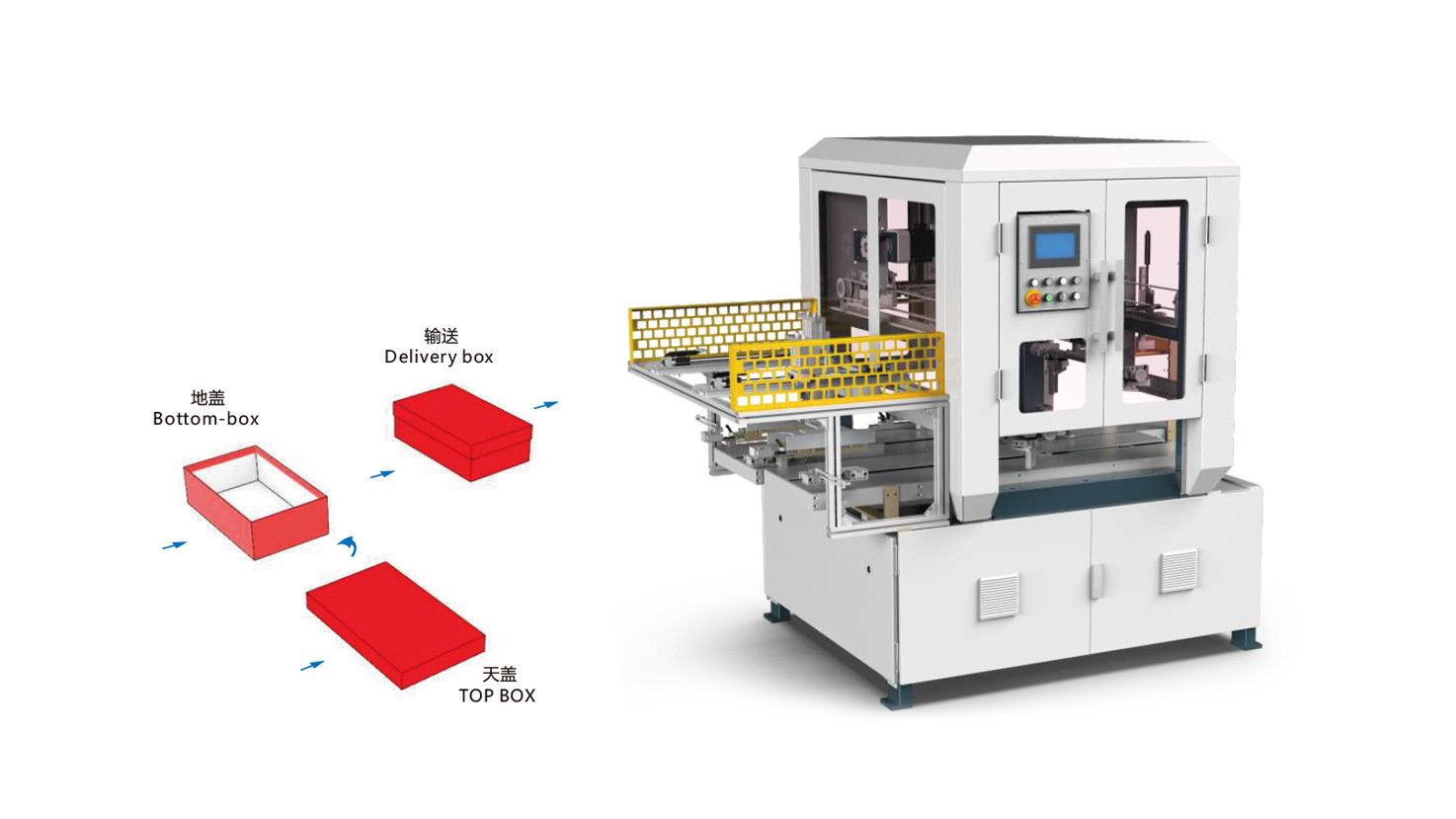

This machine adopts the one-way cover box working mode.The mouth of the bottom
box is facing upwards, and the conveyor belt is intermittently hooked into the machine from
the left side.The box of the top box is facing down, and the conveyor belt is intermittently
hooked into the machine from the right side. The positioning adopts the Module Robot arm.
The fixture moves to the top of the top box, and the cylinder is used to lift the top box from the
four corners and then move to the top of the bottom box. The top box is placed on the bottom
box.Press the capped box in place and output it.The whole machine is controlled by PLC, and
the working parameters are set by the touch screen.
Features and function:
1. Suitable for assembly line of automatic production lines;
2. Automatic production of cover box processes for various top boxes and bottom boxes;
3. Adopt Module Robot arm positioning;
4. Adopt PLC automatic control, touch screen man-machine interface to set working parameters;
5. Auto error stop and display;

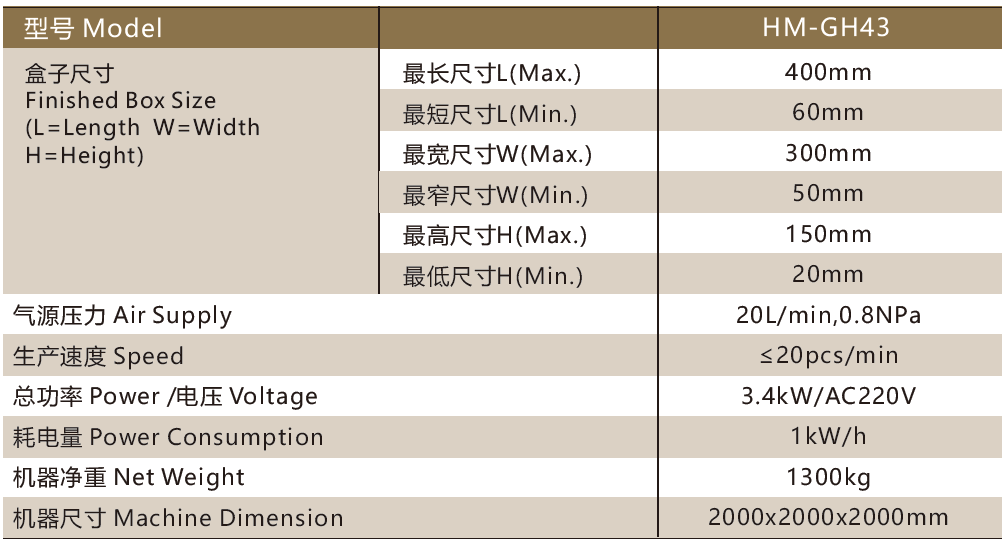

Technical parameters:
