Product Display

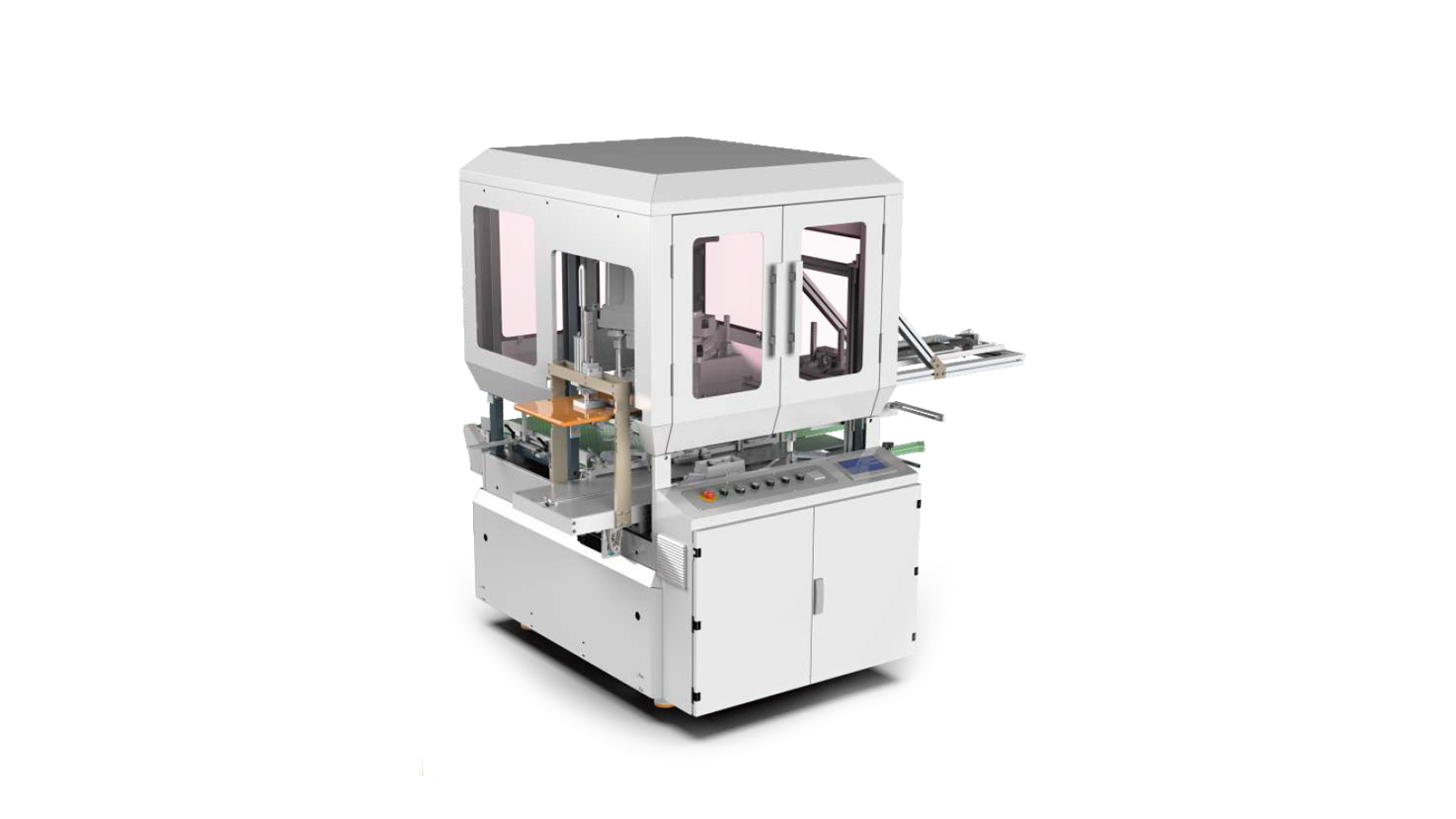

HM-GH40B Automatic Cover Box Machine

Functional description:

HM-GH40 Automatic Cover Box Machine is an automatic equipment for the production of
cover box process of various top boxes and bottom boxes in automatic production lines.

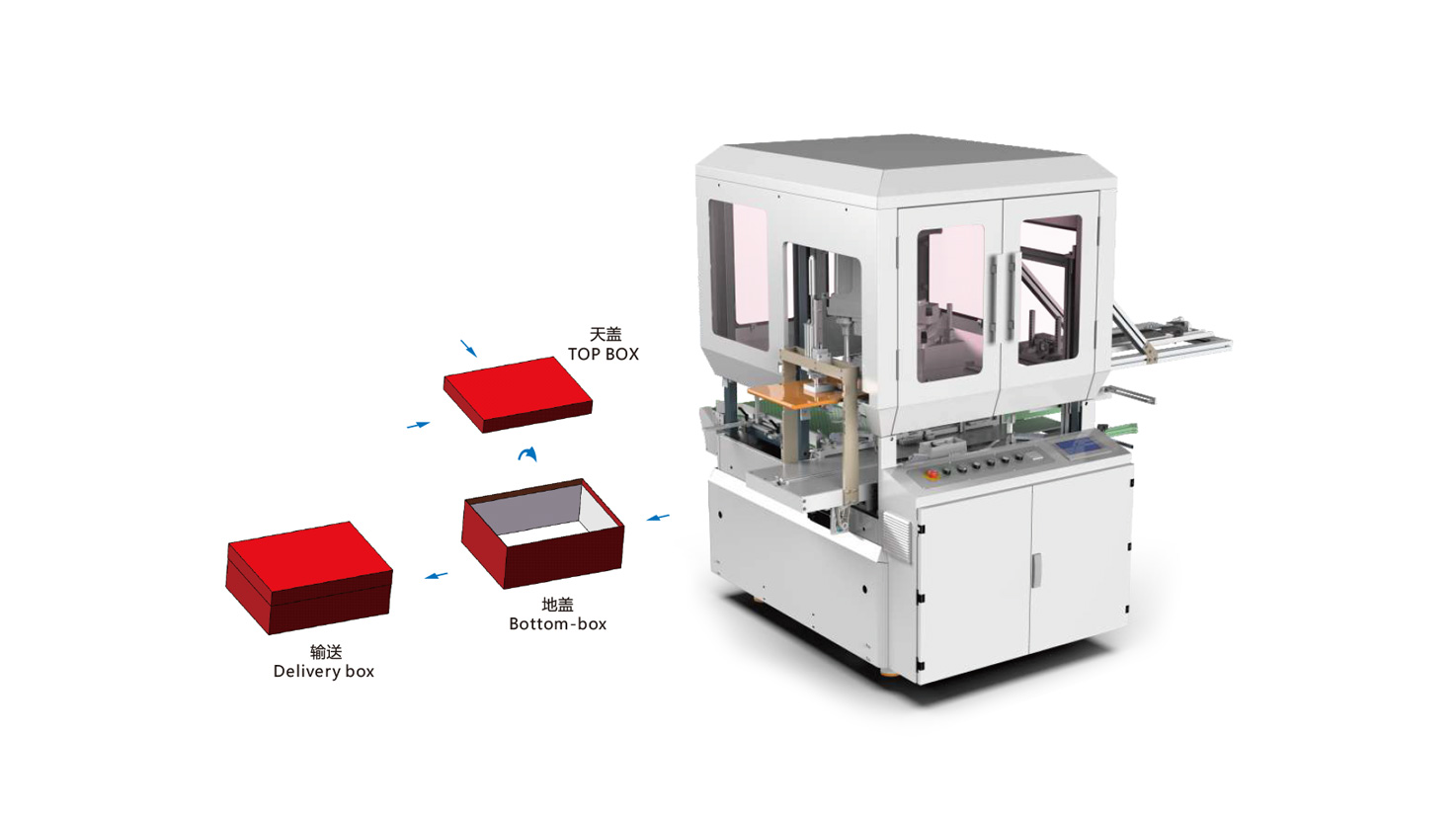

The working mode of the machine is: the mouth of the bottom box is facing upward,
continuously moving at a constant speed on the conveyor belt, and the mouth of the top box is
facing downward, and feeding is carried out from another conveyor belt in the running
direction of the parallel box (the direction of the conveyor belt can also be modified to feed in
the vertical bottom box direction).After the robot grabs the top box, it moves to the bottom
box, follows the bottom box and presses down. After the cover box is completed, the robot will
pick the next top box and cover. This cycle works. The whole machine is controlled by PLC, and
the working parameters are set by the touch screen.

Features and function:

1. Suitable for assembly line of automatic production lines;
2. Suitable for the automatic production of the cover box process of various top boxes and
bottom boxes;
3. Adopt YAMAHA Robot positioning;
4. Adopt PLC automatic control, touch screen man-machine interface to set working parameters;
5. Auto error stop and display;

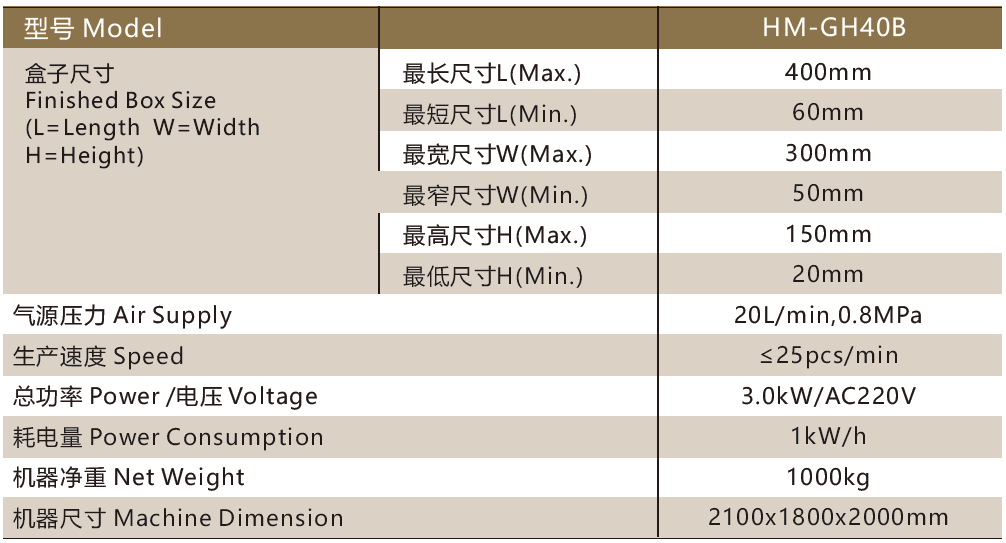

Technical parameters:
