Semi-auto Rigid Box MachineHOME > PRODUCTS > Semi-auto Rigid Box Machine
  • HM-KY40 Conjointed Box Pressing Machine
  • HM-KY40 Conjointed Box Pressing Machine

Product Display

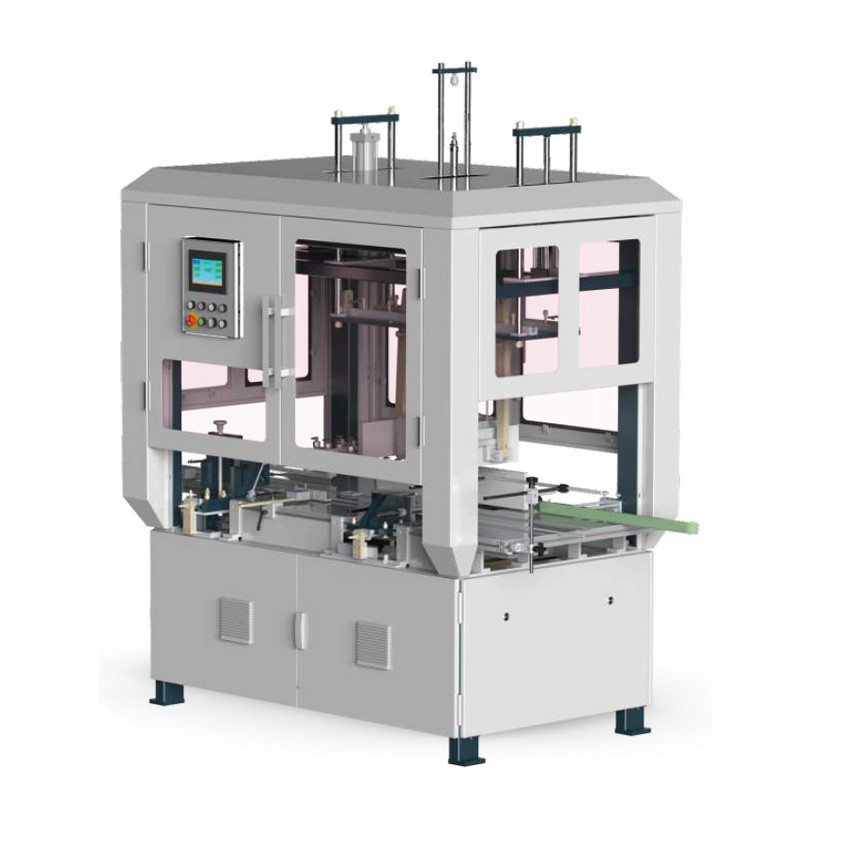

HM-KY40 Conjointed Box Pressing Machine

Functional description:

HM-KY40 Conjointed Box Pressing Machine is an automatic equipment for conjoint box pressing in automatic production line.

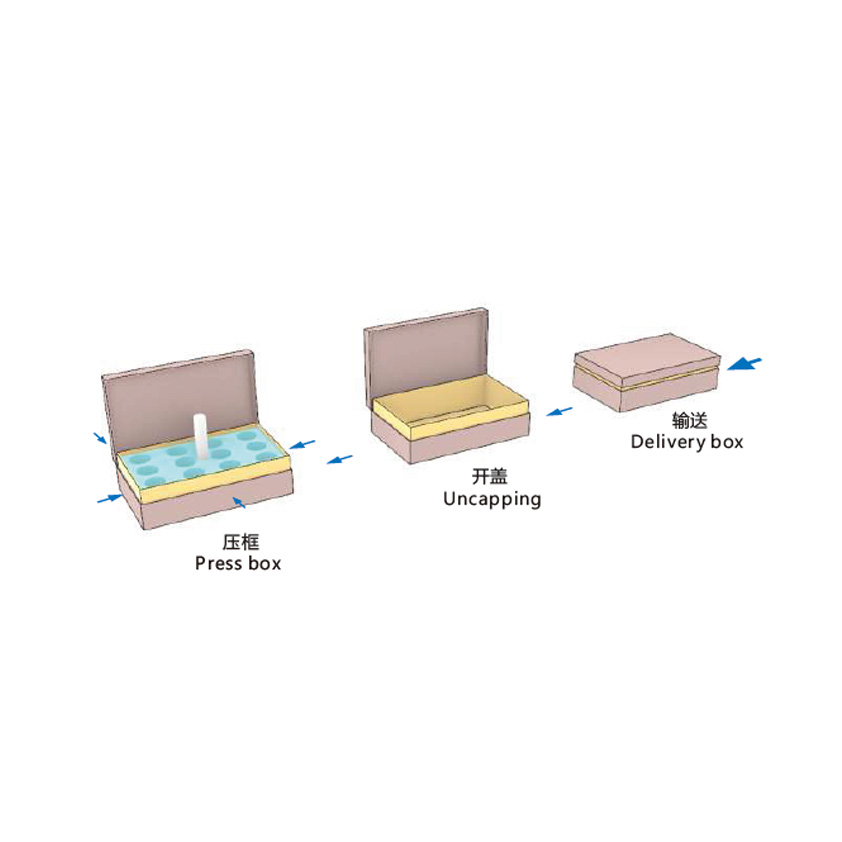

The machine adopts intermittent working mode. After the conjoinedt box (the top box is connected with the bottom box by a
reinforcing piece), the machine is hooked up intermittently from the conveyor belt. The uncapping mechanism adopts pneumatic
device. The vacuum suction nozzle sucks the top box and controls uncapping along the semicircle track. After the box is uncapping, it
is moved to the frame pressing position, the mold is set into the bottom box to expand and hold the inner cavity of bottom box. Four
pressing plates on the outer four sides are pressed at the same time. After the mould is released from the pressing plate, the box is
output backward. The whole machine is controlled by PLC, and the working parameters are set by touch screen.

Features and function:

1. Suitable for assembly line of
automatic production lines;
2. Suitable for automatic production of
press process of conjointed box;
3. Adopt PLC automatic control, touch screen
man-machine interface to set working
parameters;
4. Auto error stop and display;

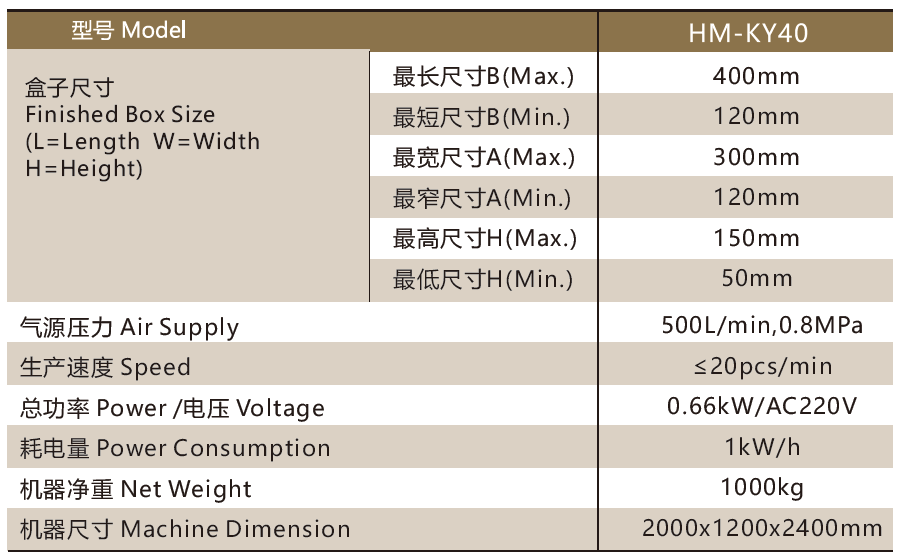

Technical parameters:



TAG:  Automatic rigid box making machine, rigid box line, rigid box making machine, Set up box machine, cardboard box machine, mobile phone box machine Automatic rigid box machine cardboard box machine paper box machine cosmetic box machine
