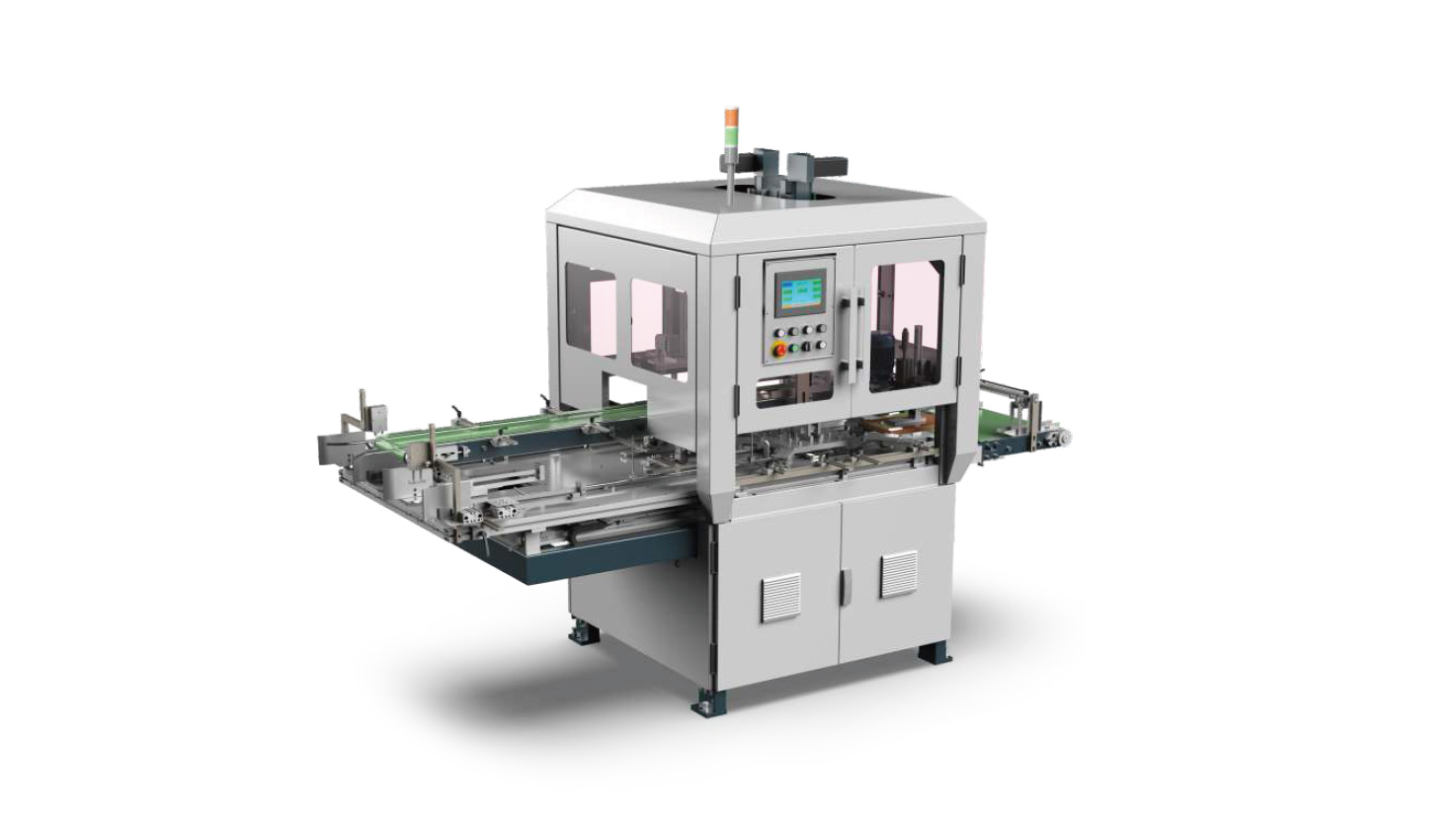

HM-GH30C Double-Path Cover Box Machine
Functional description:
HM-GH30C Cover Box Machine is an automatic equipment for the production
of cover box process of various top boxes and bottom boxes in automatic
production lines.

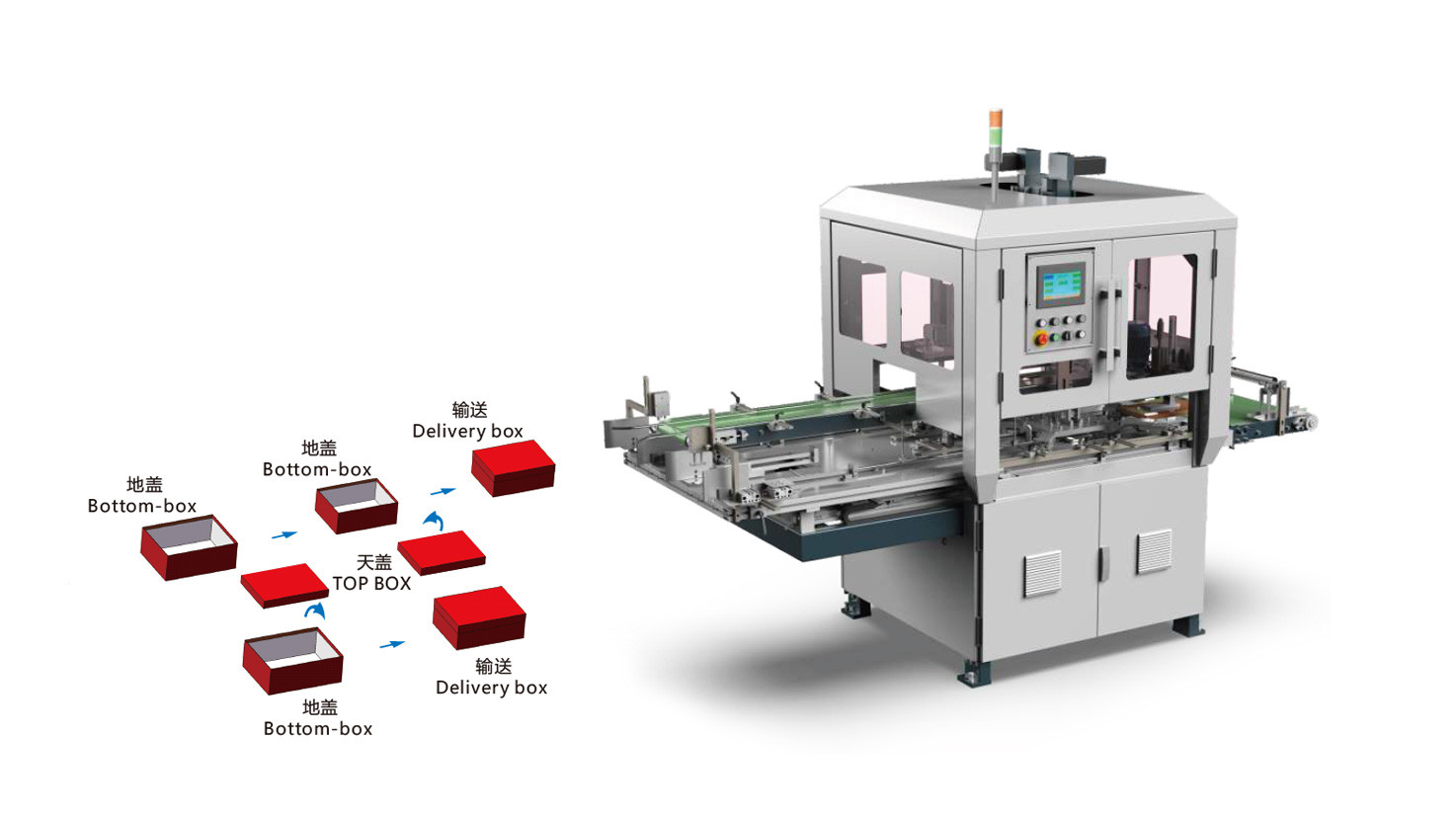

This machine adopts the two-way cover box working mode. It uses the upper
and lower structure. The top box is continuously feed into the machine from the
upper conveyor belt, and the bottom box is intermittently hooked into the machine
from the lower layer. When positioning, the two-way rotating cover box method is
adopted, and then the machine will bring two queues together when the boxes are
coming out. The whole machine is controlled by PLC, and the working parameters
are set by the touch screen.
Features and function:
1. Suitable for assembly line of automatic production lines;
2. Automatic production of cover box processes for various top boxes and bottom boxes;
3. Aopt Module Robot Arm positioning;
4. Adopts PLC automatic control, touch screen man-machine interface to set working parameters;
5. Auto error stop and display;

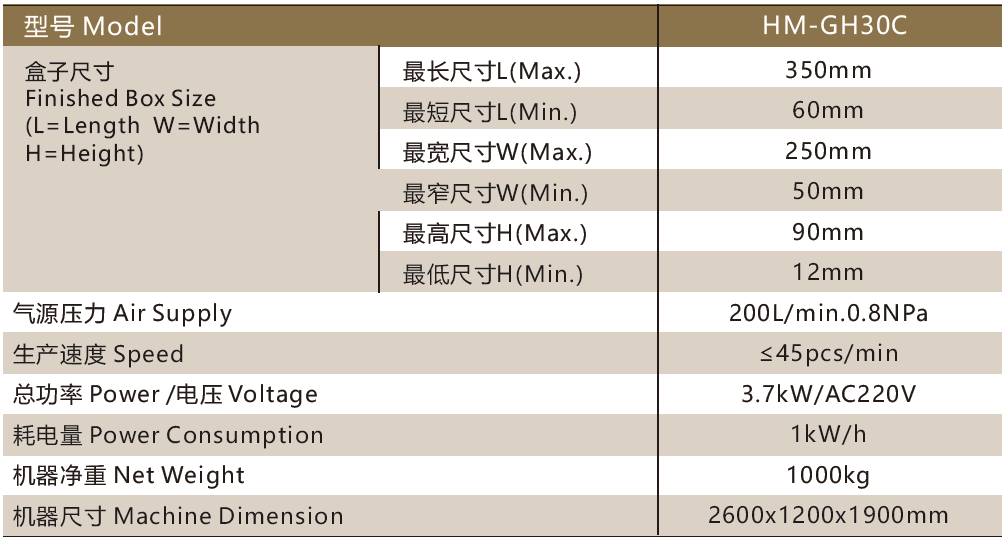

Technical parameters:
