  • HM-TK430A Card paper pasting machine
  • HM-TK430A Card paper pasting machine

Product Display

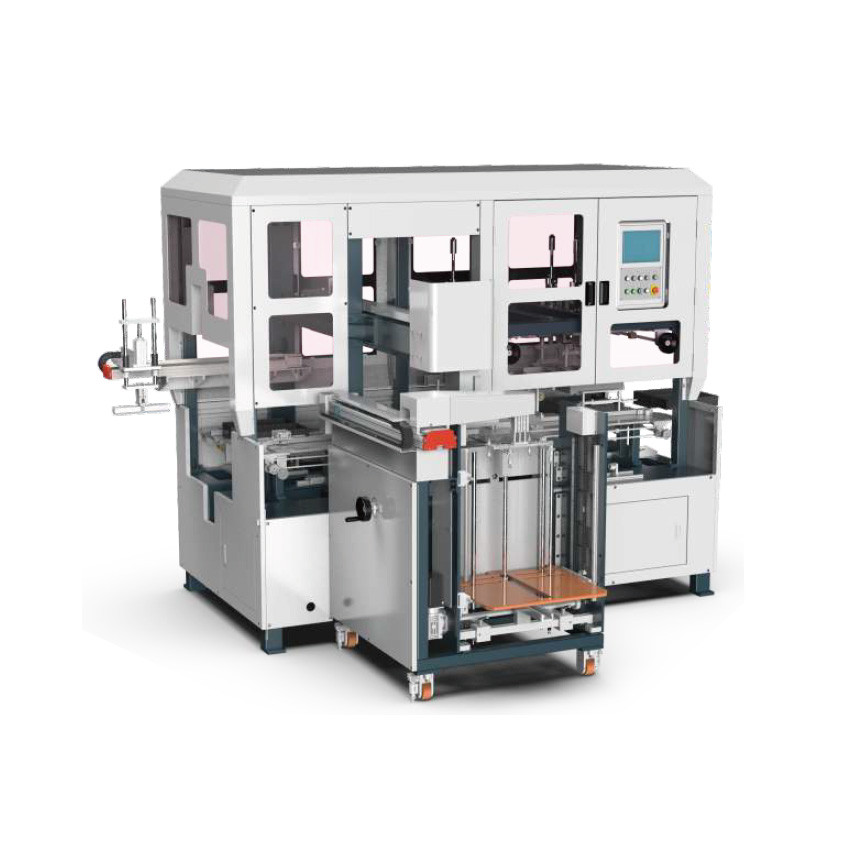

HM-TK430A Card paper pasting machine

Functional description:

HM-TK430A card paper pasting machine is an automated
equipment mainly used for pasting linings on top and bottom
cover conjoined boxes.
This machine adopts the working method of roller gluing
and intermittent clamping and box feeding. The operation is
simple, the work is stable and efficient, the entire machine is
controlled by PLC, and the touch screen is used to set working
parameters.

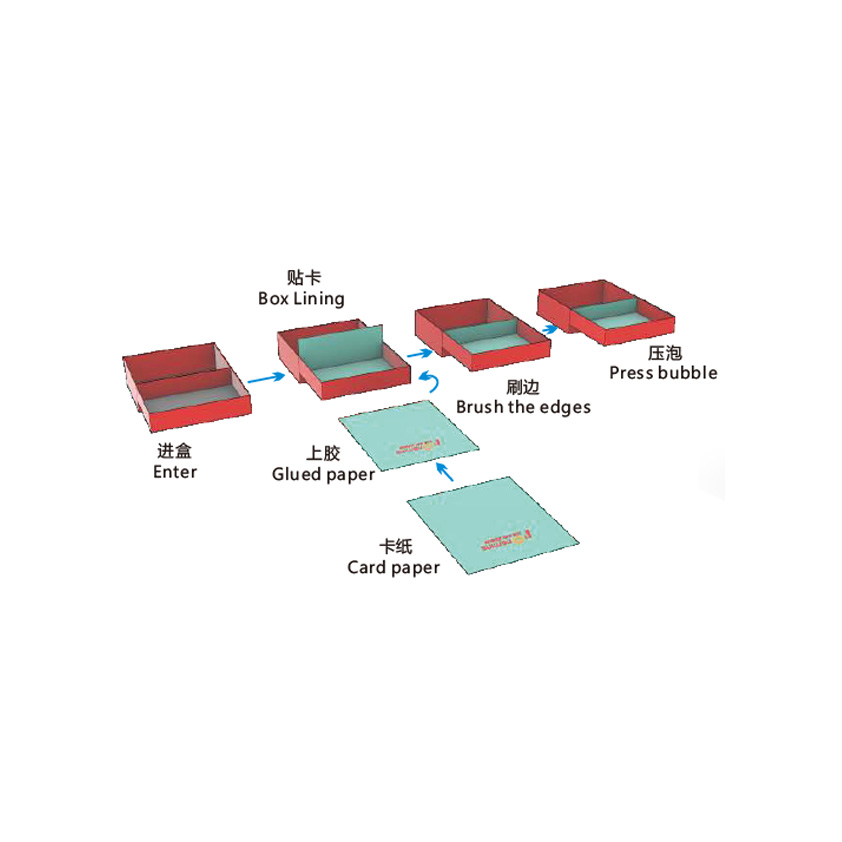

Features and function:

1. The machine is in assembly line mode, with four linear stations;
2. As soon as the work station enters the box, calibrate the position;
3. Calibrate the jammed paper in the second station and apply glue to the inner lining;
4. Brush the edges of the joints between the floor box and the floor box for three days at the work station;
5. Press the bottom bubble at the fourth station;
6. The whole machine adopts PLC automatic control, and the touch screen human-machine interface sets
working parameters;

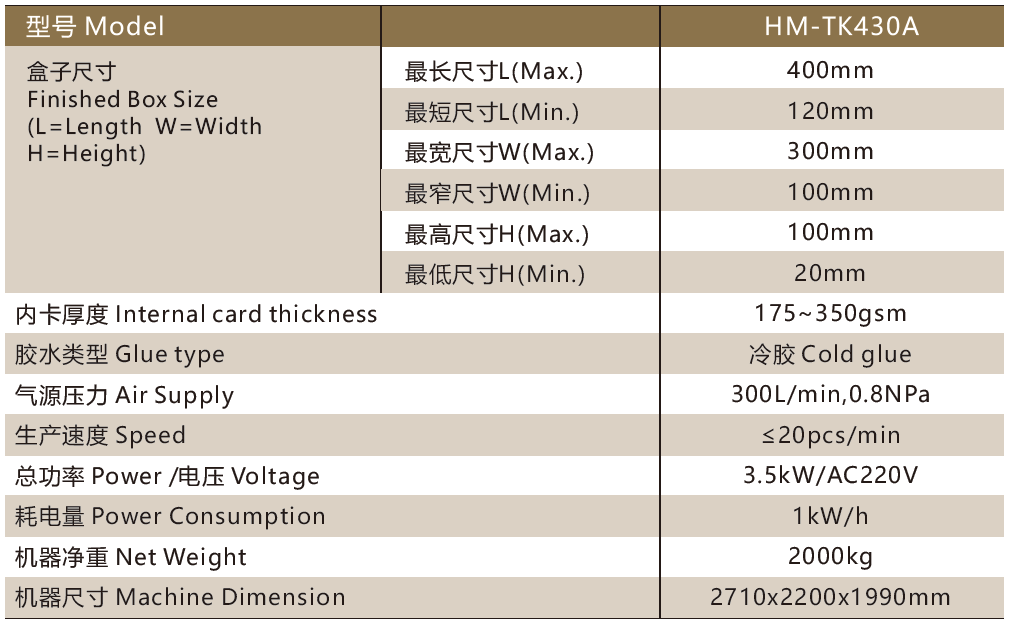

Technical parameters:



TAG:  Automatic rigid box making machine, rigid box line, rigid box making machine, Set up box machine, cardboard box machine, mobile phone box machine Automatic rigid box machine cardboard box machine paper box machine cosmetic box machine
