This Semi-auto Case Makre is the earliest in China which is dedicated to free workers from total manual work on bookcase making, and during 15 years it has gained great success and praise

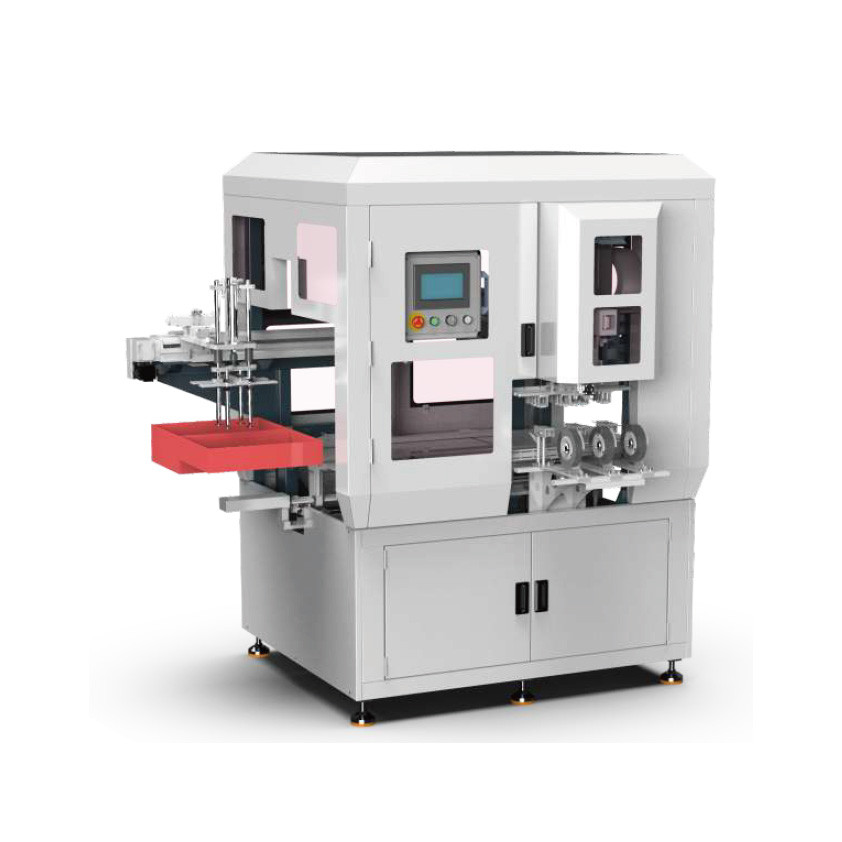

HM-TS430 Tape Pasting Machine
Functional description：
HM-TS430 Tape Pasting machine, which is mainly
applied to prevent automatic expandand open after the
hinged-neck box assembly together
This machine adopts the module suction and
positioning, and then through the holding mechanism
goes into the next station, automatically pull the tape,
automatically cut the tape, automatically paste the tape
clip box and send the box working mode. The operation
is simple, the work is stable and efficient, the whole
machine is controlled by PLC ,and the working
parameters are set by touch screen.
Features and function：

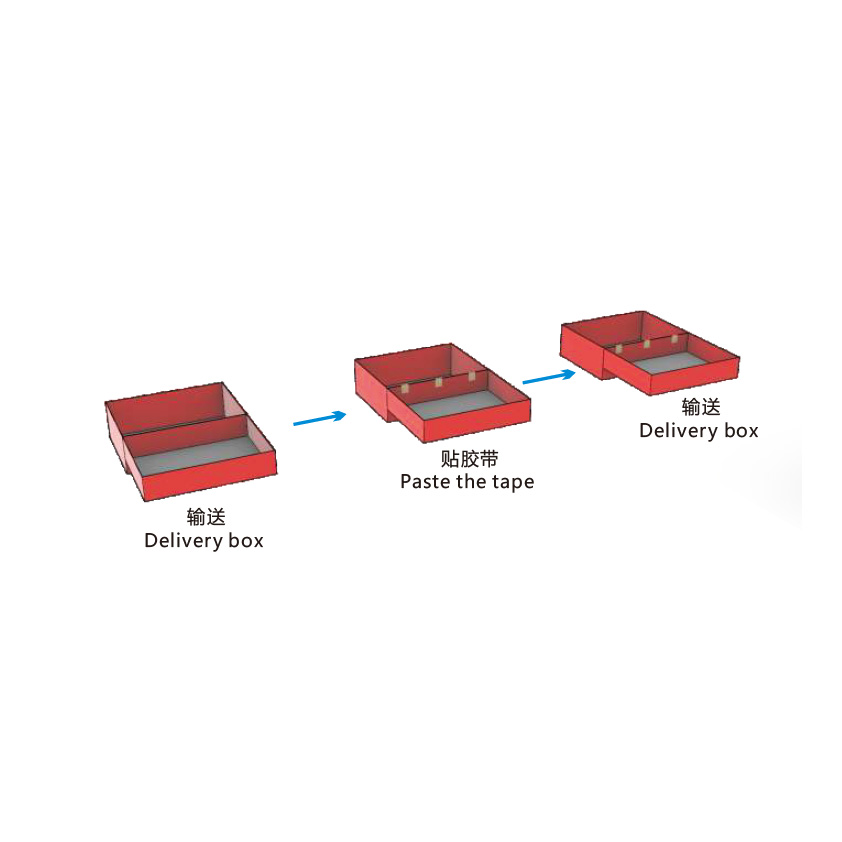

1. Machine with the assembly line mode, and linear multi-station;
2. Station one: goes into the box and calibration;
3. Station two : pull tape, cut tape,paste the tape；
4. Station three: out -of-box；
5. The machine adopts PLC automatic control, touch screen man-machine interface to set working
parameters;

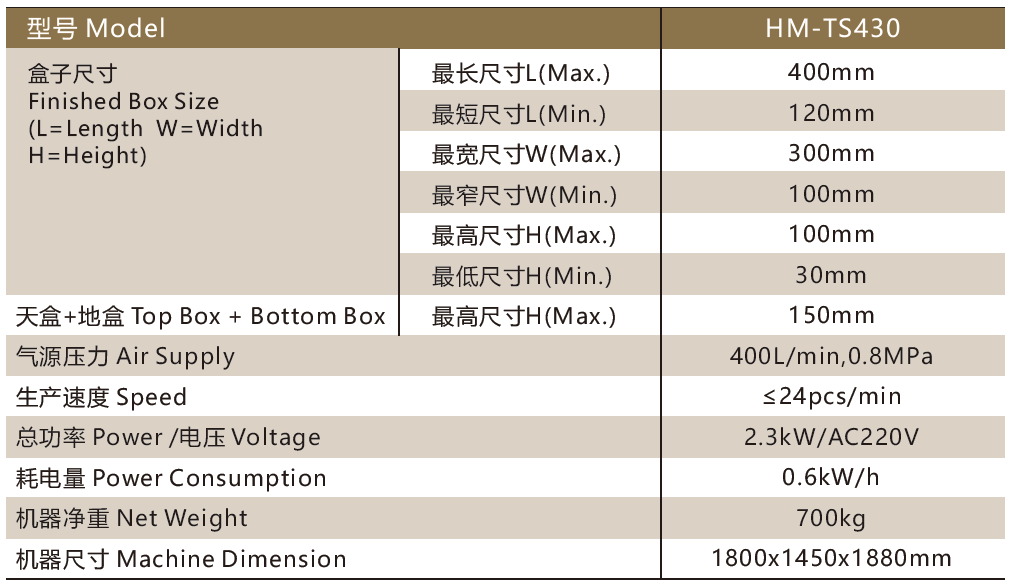

Technical parameters:
