HM-PZ850 Book box assembly machine
Functional description:

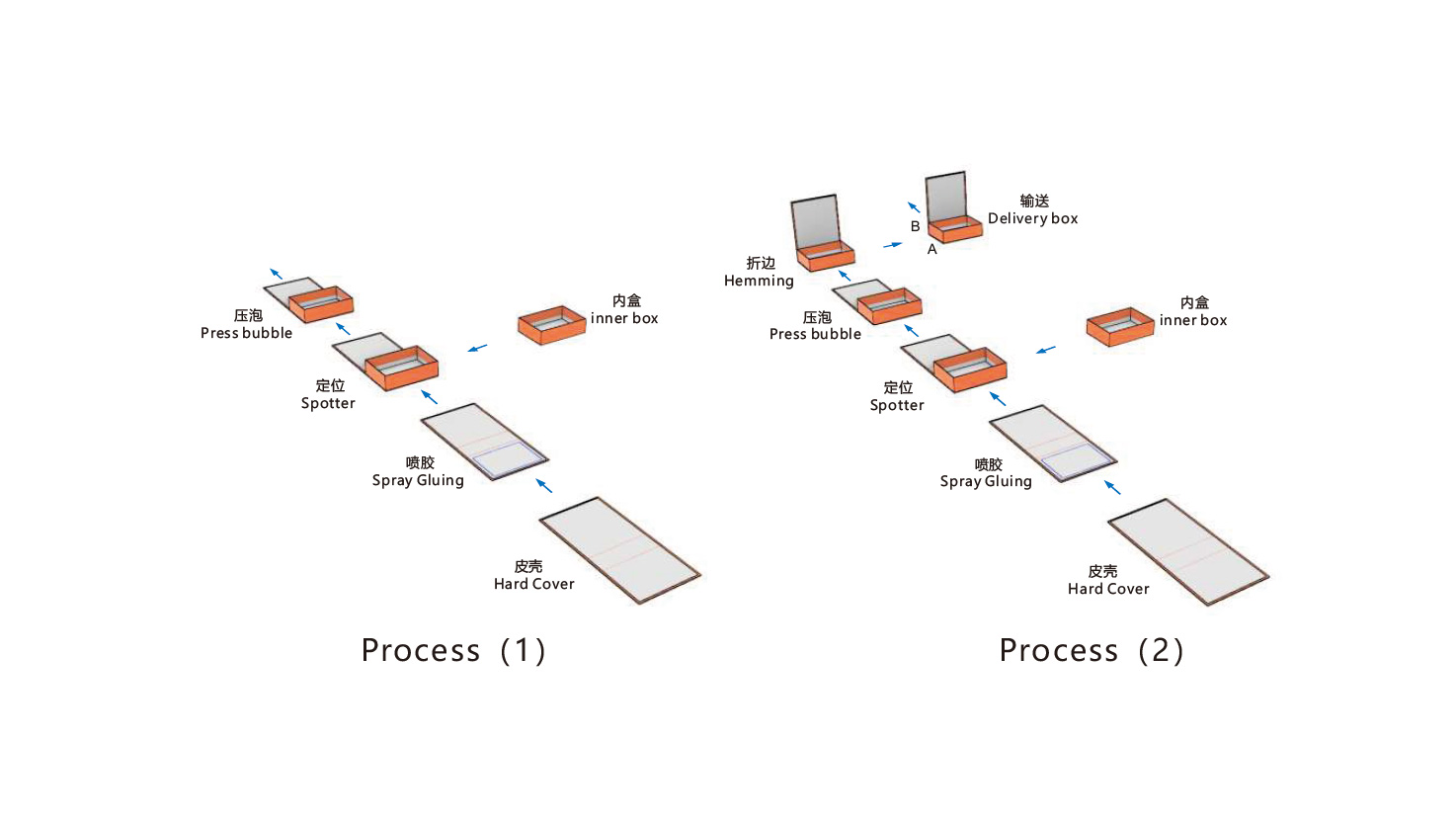

HM-PZ850 is an automatic equipment for the automatic glue spraying and bonding process of
the rigid box and the hardcover. This machine mainly pallets the processed skins in the silo
manually or by a manipulator, and automatically pushes and pulls the skins in the silo one by
one through the splitting mechanism, and then falls on the hook platform, and then the servo
motor drives it. The three sets of hooks move back and forth. The hooks are placed on the
glue head position and assembly position. The glue head is fixed on the two-axis manipulator.
The manipulator motor is controlled by the program. According to the shape of different boxes,
the glue head can be used to draw points and draws. Line, draw rectangles and irregular lines,
spray various patterns on the leather case, hang the hook after spraying glue, and then put
the leather case hook in the Tiandi Box assembly area. At this time, another group of manipulators
quickly grab it from the Tiandi Box production line A box, the bottom of the box is quickly glued
to the glue-sprayed skin. After the combination is completed, the bottom and the sides are
pressed, and the finished box is finally produced.
This machine adopts multiple sets of well-known brand manipulators and hot melt glue machines. The glue
spraying machine is equipped with an automatic heating system, which can be turned on and preheated before
work. The switchboard system has its own memory storage function, and the finished products can be adjusted directly.
Take, start on, no need to re-edit, the operation panel can be hand-held to each workbench, the whole machine is controlled
by PLC, and the working parameters are set by the touch screen. The operation is simple, the work is stable and efficient, and it
is a highly cost-effective fully automatic intelligent equipment .
Features and function:
1. The hardcover can be divided into sheets automatically, can be fed continuously, and can be connected to an
automatic production line;
2. Hardcover positioning servo control, accurate parking position, accurate assembly position and high
efficiency;
3. Spray hot melt glue for bonding and positioning, equipped with high-end glue spraying system, spray glue
evenly, and glue can be sprayed with any pattern;
4. After the glue is sprayed, the bottom and the side are automatically pressed;
5. The assembled box can be automatically fed into the box, and the finished product can be automatically
discharged out of the box. It can be connected to the world box machine and the hardcover unit synthesis
production line;
6. With fault diagnosis function;
Technical parameters:
