HM-PK850A Automatic Four side Folding-in Machine

HM-PK850A  Automatic Four side Folding-in Machine

Functional description：

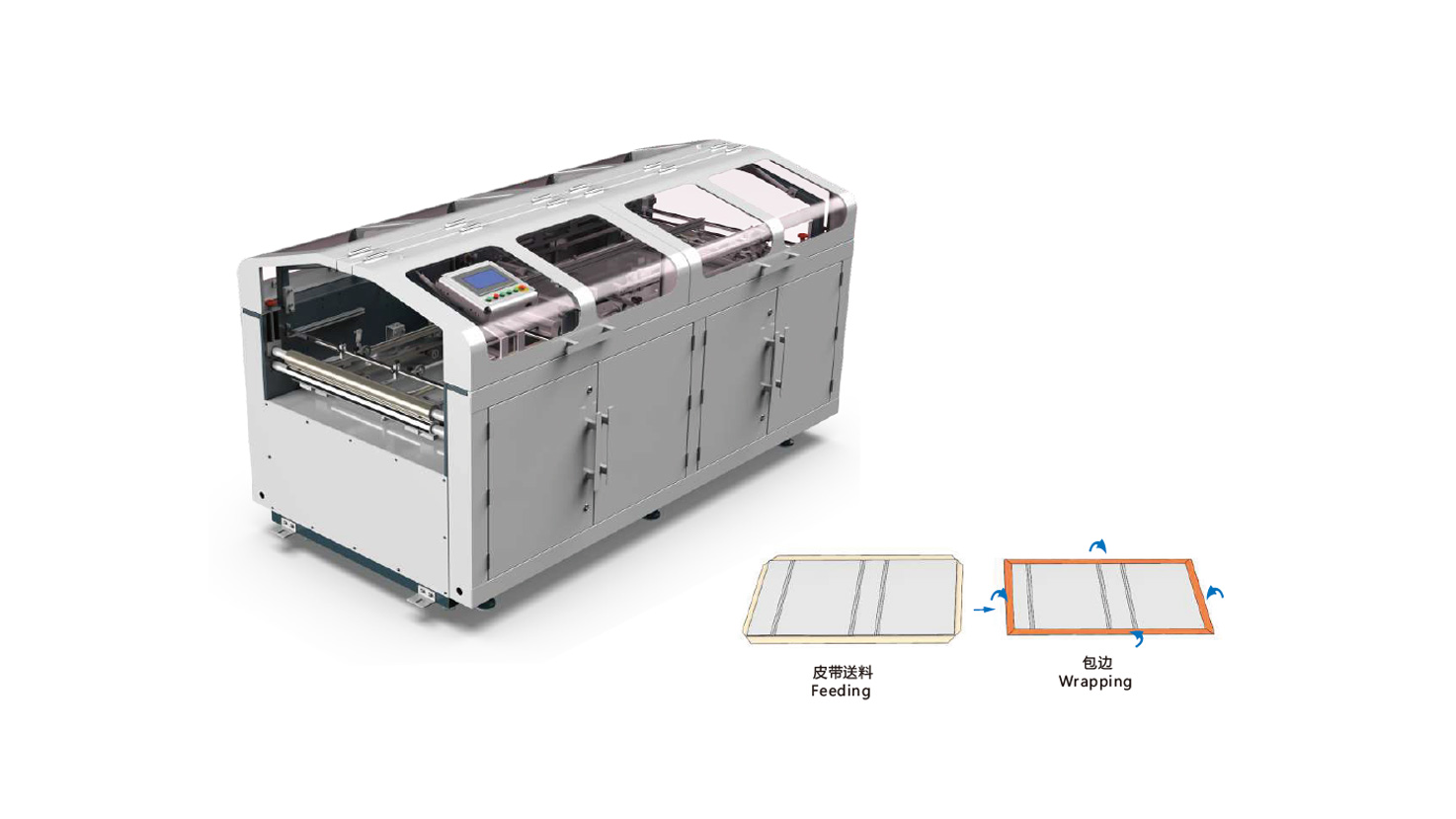

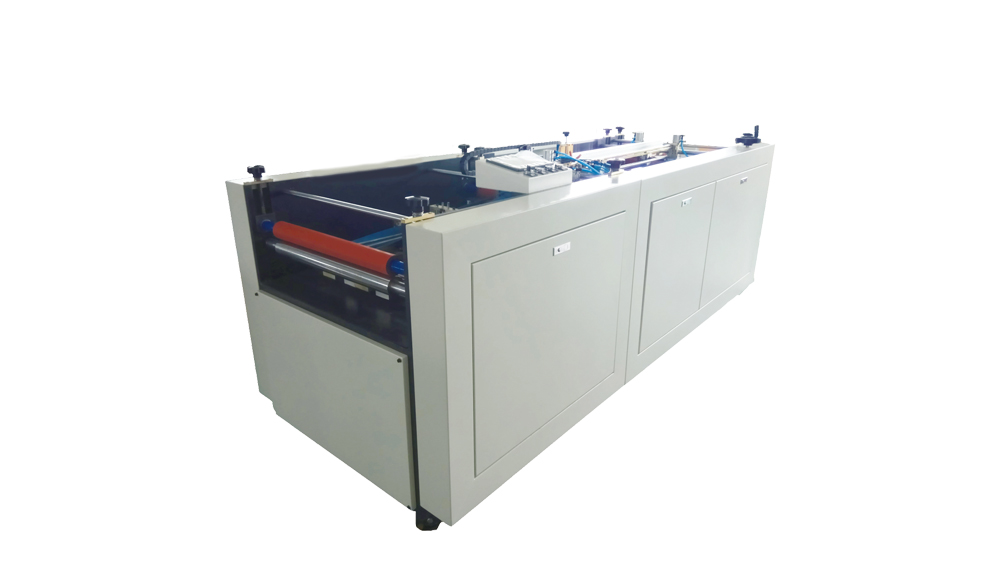

HM-PK850A Automatic Four-side Folding-in Machine is an
automatic equipment for folding 4 sides of the hard case. It is suitable
for the production of various hard cases in automatic production lines.
This machine adopts servo motor and cam to work together to
realize folding four sides of hard case. Easy adjusting, stable and
efficient. The whole machine is controlled by PLC, and set parameters
by touch screen.

Features and function：

1. Special for a series of grey board packaging applications, such as wine boxes
book covers, gift boxes, tea boxes, etc;
2. Using mechanical cam transmission, stable operation, low failure rate and high efficiency;
3. The machine can fold four sides of hard case at a time, either alone or in line to form a
production line;
4. Adopt PLC automatic control, touch screen man-machine interface to set parameters；
convenient and easy to operate;
5. Auto error stop and display;

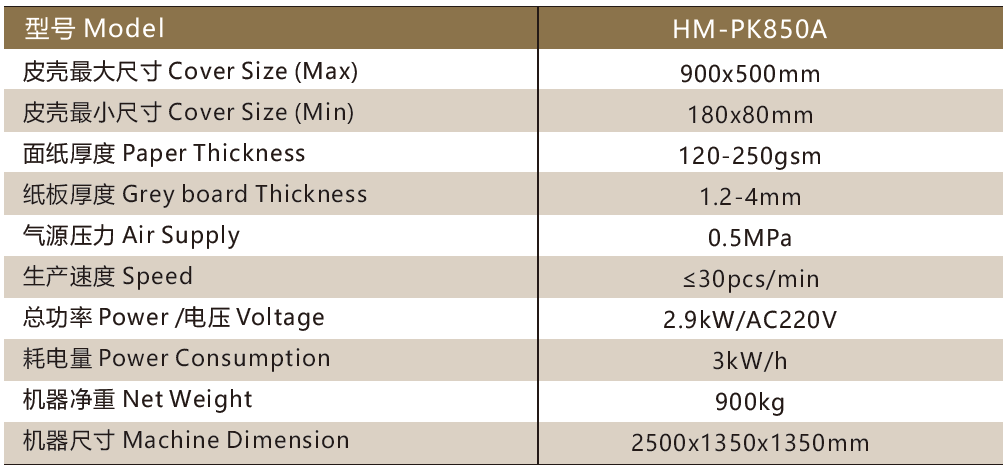

Technical parameters:
