HM-650A-X Glue and spotter machine

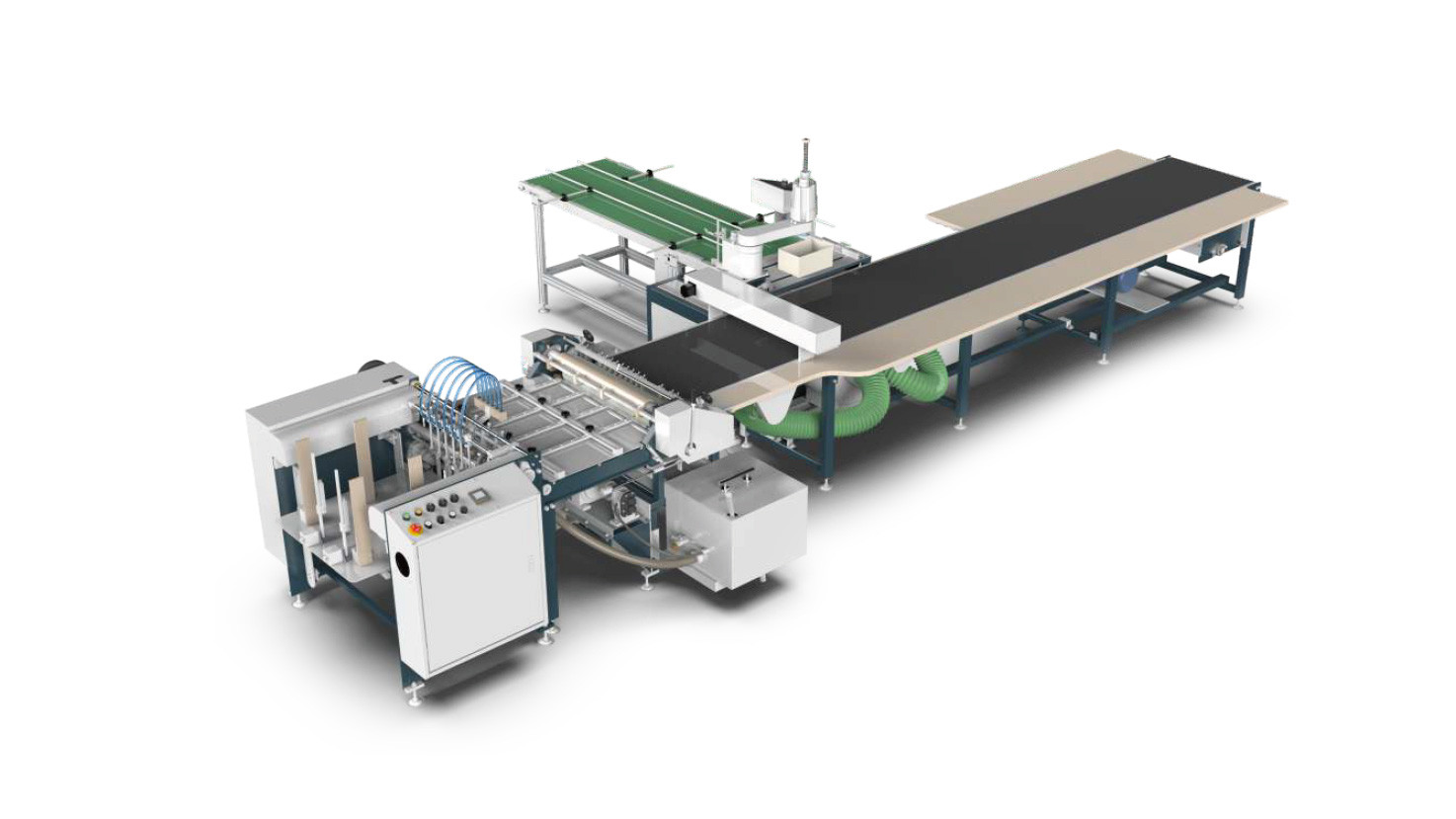

HM-650A-X Glue and spotter machine Description:

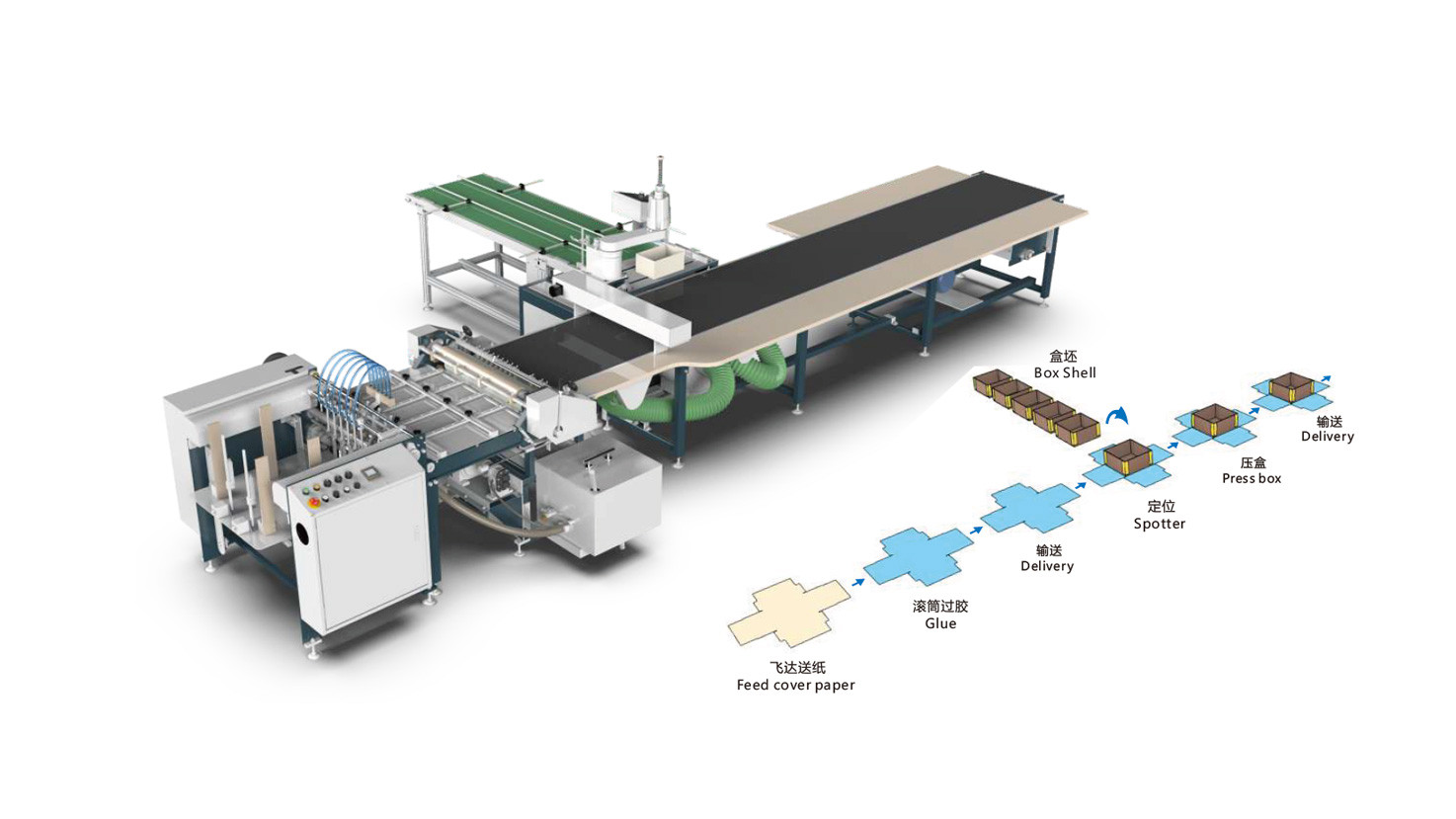

HM-650A-X Gluing and spotter machine is suitable for the
positioning process production of various rigid box. This machine
adopts traditional mechanical Feeder system, robot and touch
screen man-machine control system, and high-speed scanning
positioning system to realize automatic positioning of rigid box.
The positioning part adopts the method of servo synchronous
belt module + optical fiber moving scanning surface paper, and
external encoder, which improves the positioning accuracy and
efficiency, and the error range is 0.1-0.2mm.

Features and function：

1. Suit to all kinds of paper and box shells
positioning process;
2. Automatic feed paper;
3. Timing automatic heating control system；
4. Robot grabs;
5. Automatic feed paper
Remarks: Run-stop function is optional;

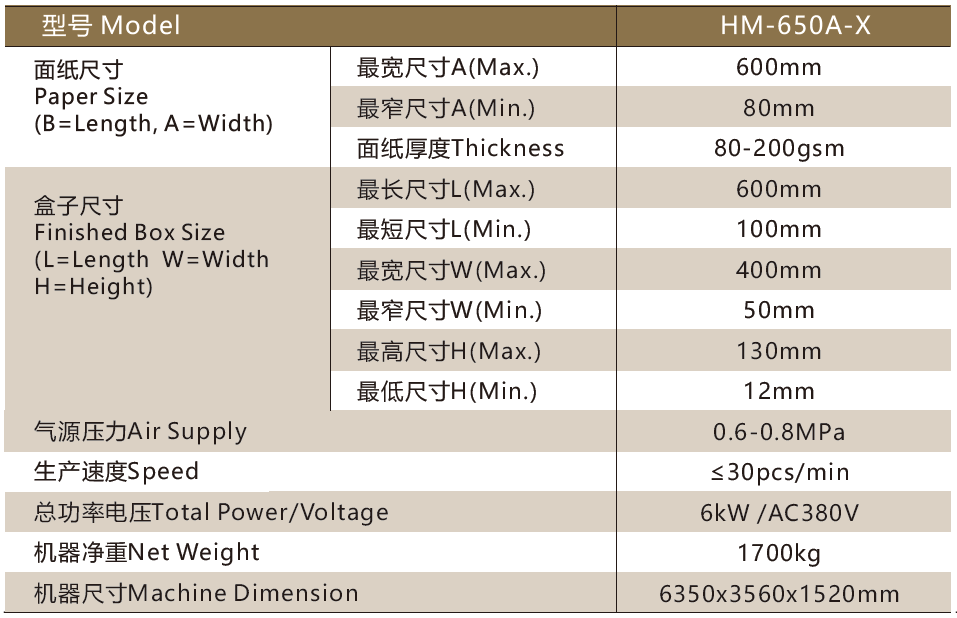

Technical parameters:
