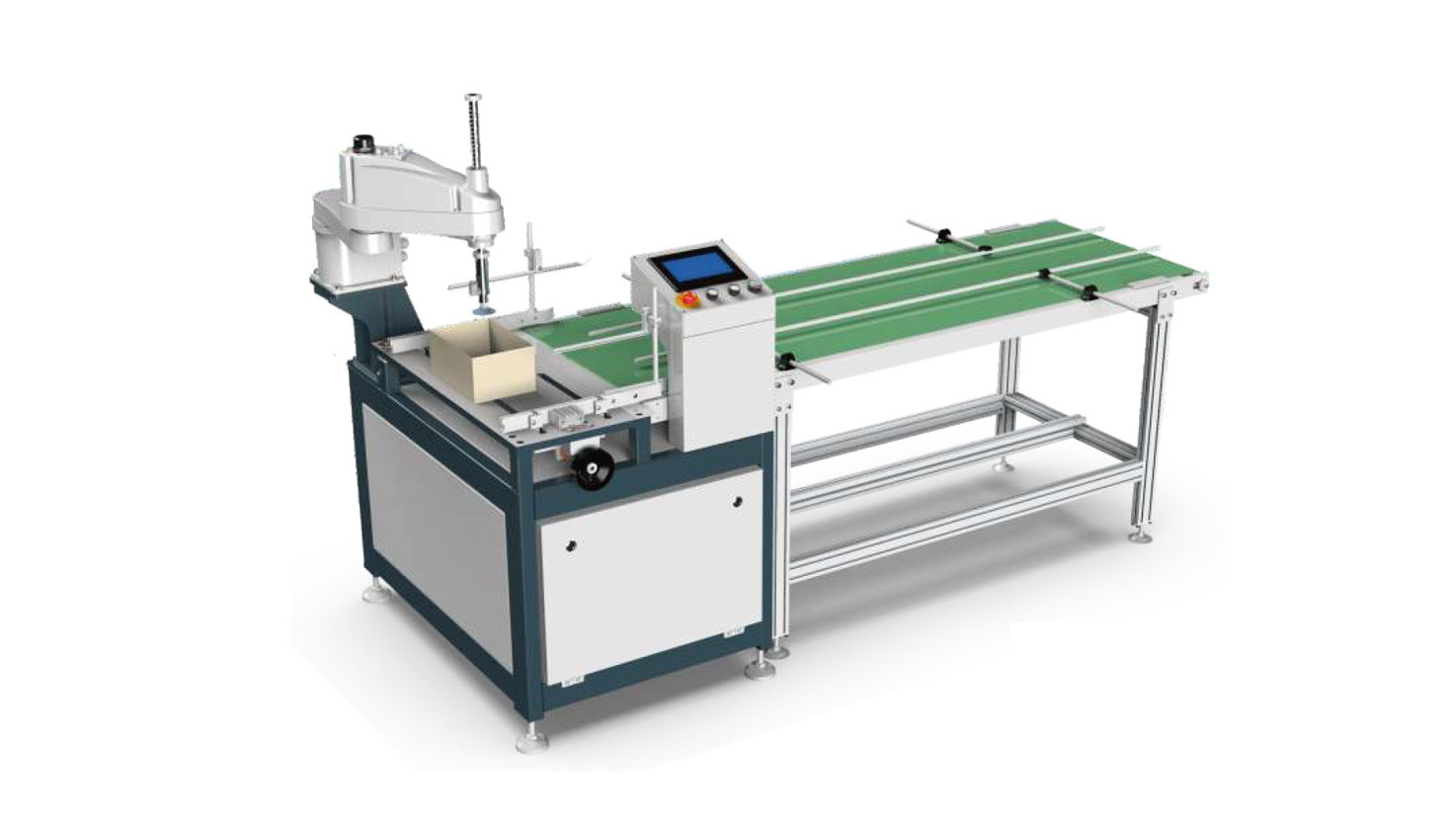

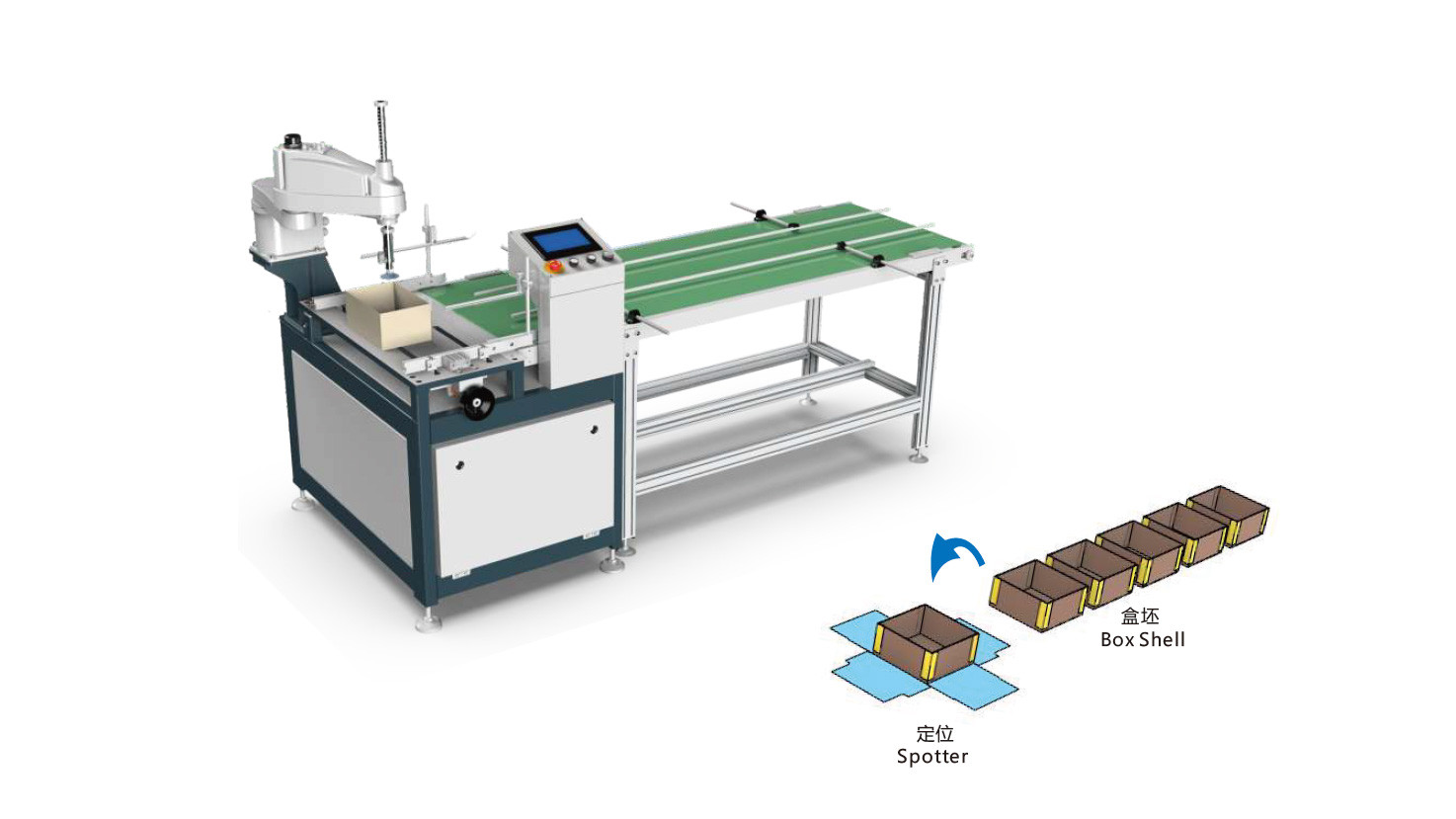

HM-600X Automatic Gluing and Spotter Machine

HM-600X Automatic Gluing and Spotter Machine Description:

HM-600X automatic positioning machine is suitable for the
automatic positioning process production of various rigid box.
This machine adopts robot and touch screen man-machine control
system, high-speed scanning and positioning system to realize automatic
positioning of rigid box. The positioning part adopts the method of servo
synchronous belt module + optical fiber moving scanning paper, and
external encoder, which improves the positioning accuracy and efficiency,
and the error range is 0.1-0.2mm.

Features and function：

1. Suit to all kinds of rigid boxes positioning process;
2. Robot grabs;
3. Servo control + moving fiber scanning positioning;

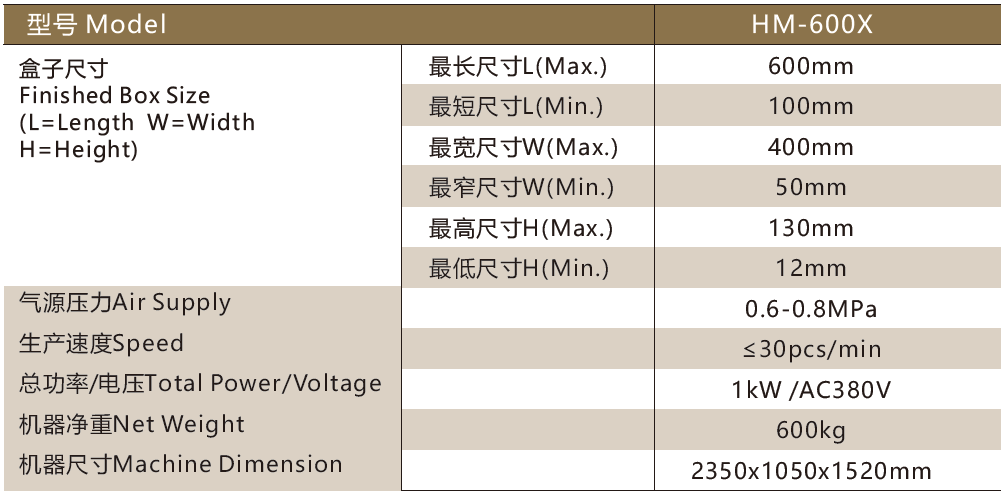

Technical parameters:
