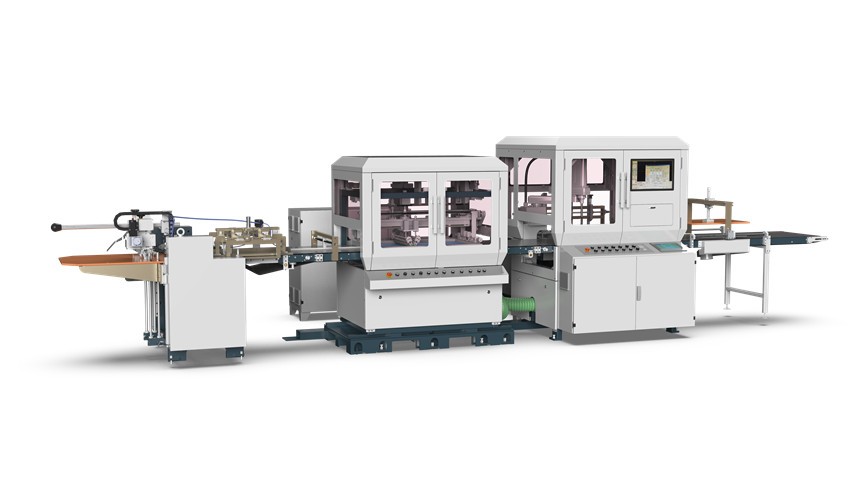

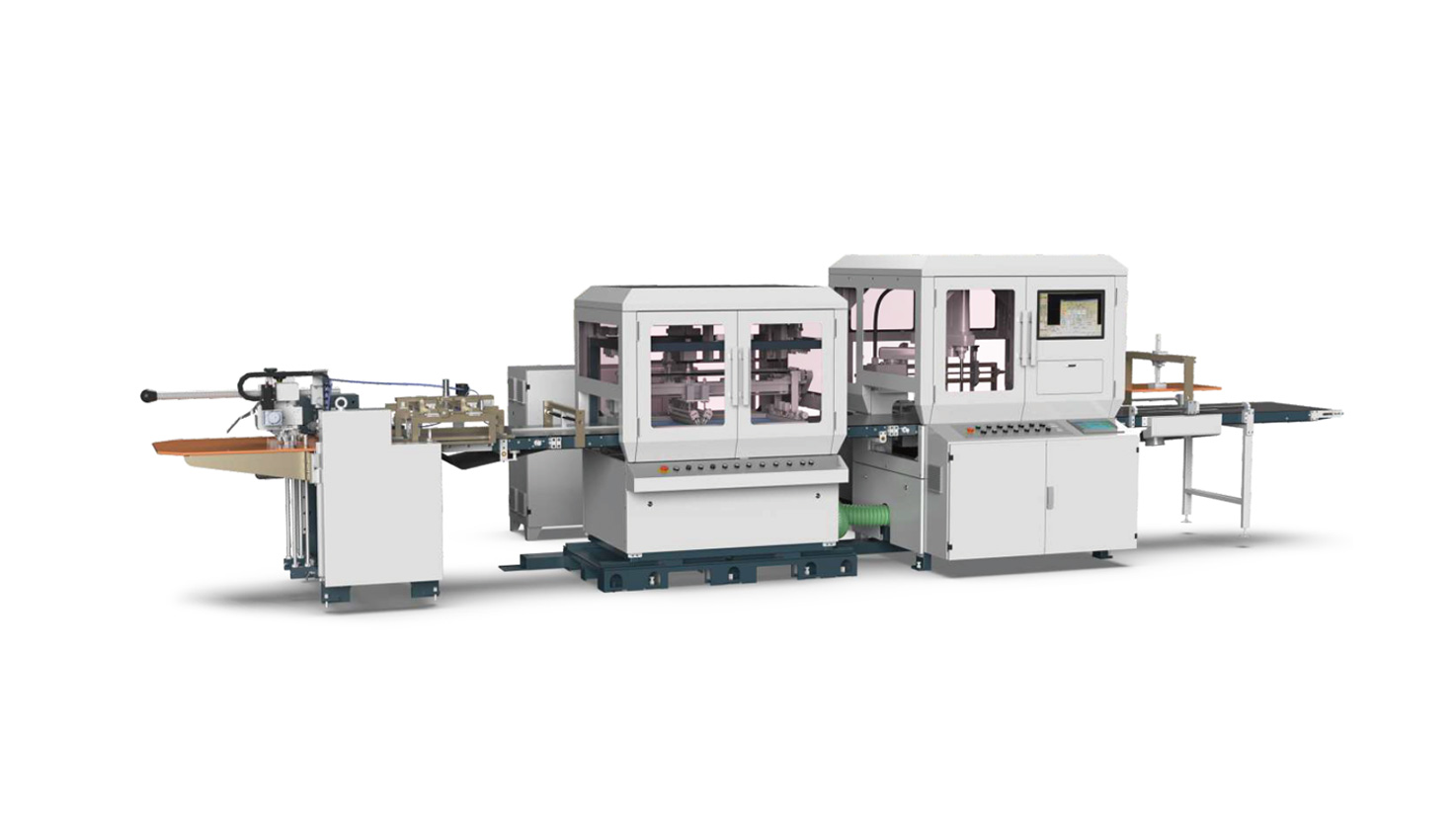

HM-600ES Automatic Screen Glue and Spotter Machine

HM-600ES Automatic Screen Glue and Spotter Machine Description:

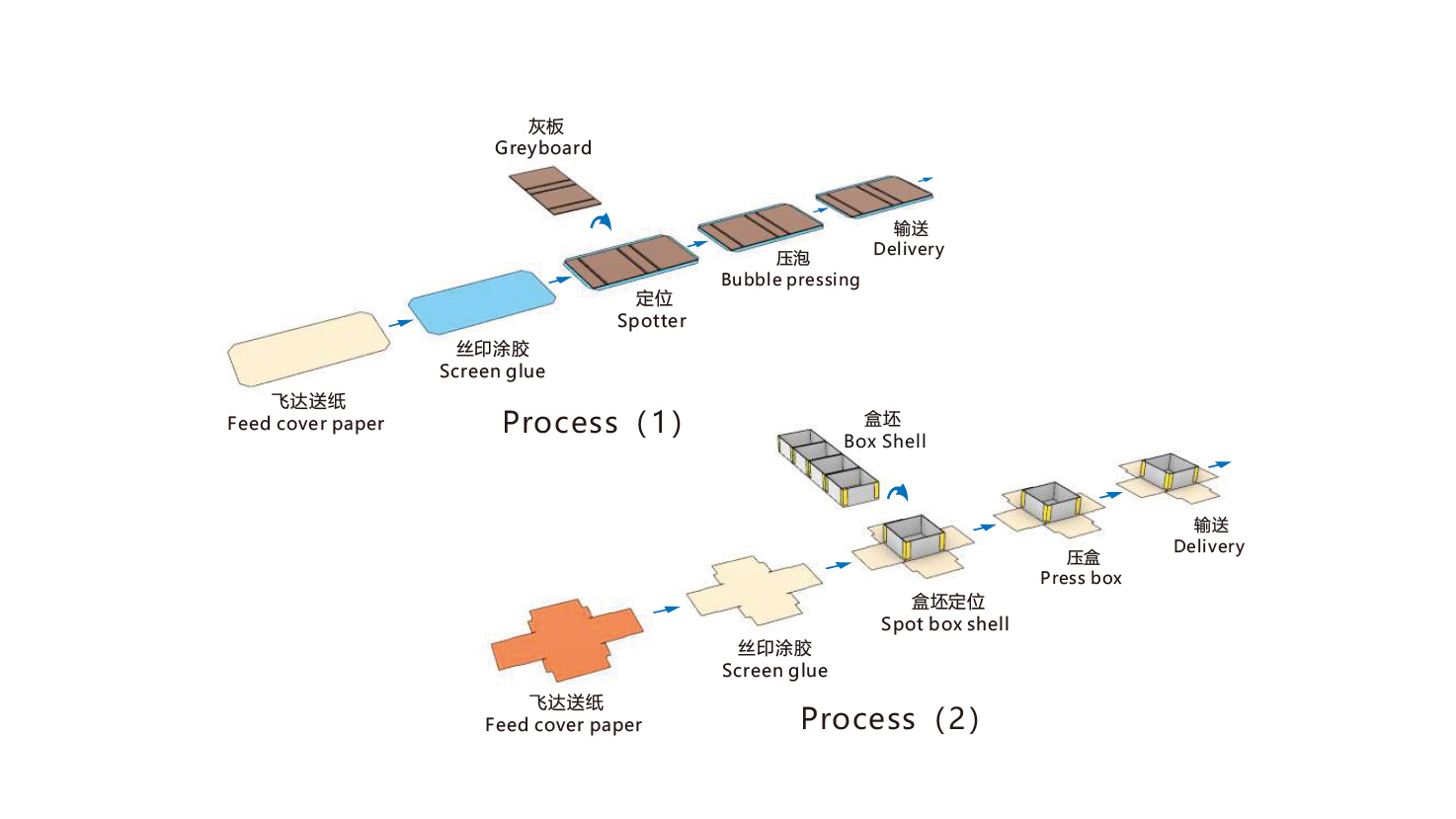

HM-600ES Automatic Screen Glue and Spotter Machine is an automatic
equipment with multifunction for high-precision positioning of book cover and
premium boxes, it is suitable to all kinds of rigid box positioning process, and all
kinds of hard cover positioning process.
This machine adopts PLC, man-machine control and CCD positioning system,
which enable the machine to feed paper, screen glue and spotter the box
automatically and fluently. The feeder, screen gluer and the conveyor are driven by
servo system which has continuously variable transmission and enjoys high accuracy,
easy adjusting, and high efficiency. Reduce height at the same time, easy to operate,

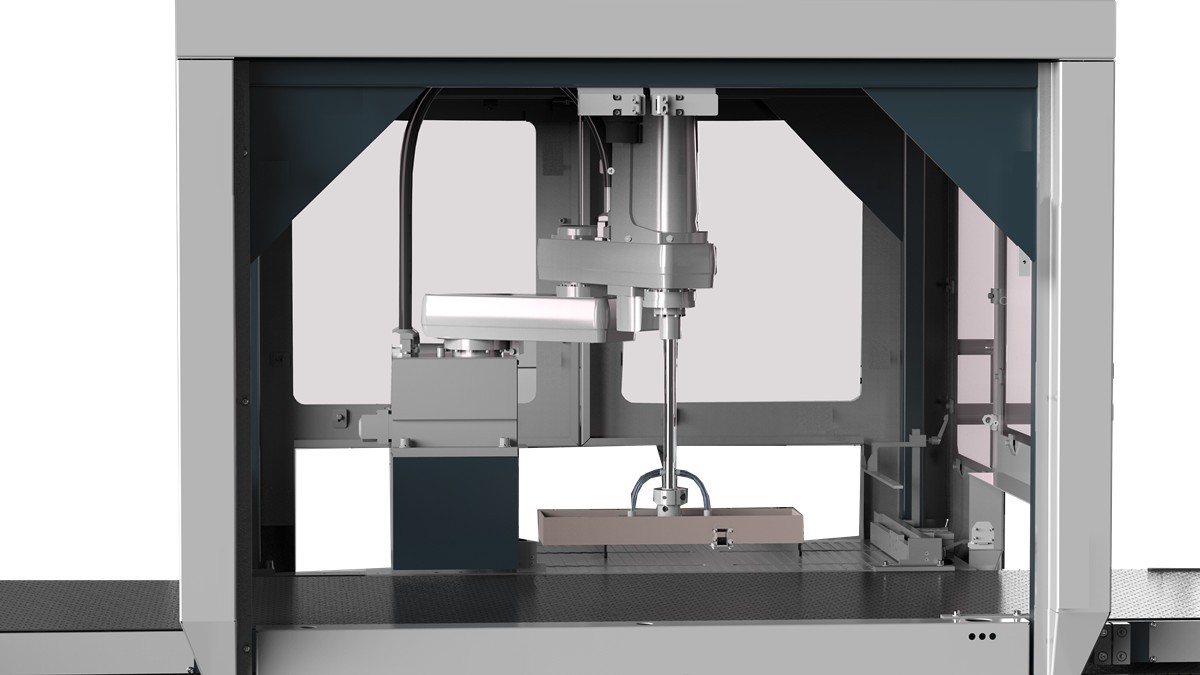

screen glue can control the gluing area. The spotting unit adopts camera tracing
sysytem and robot arm to pick and spot the greyboard , enhancing the spotting
accuracy to ±0.05mm, with even faster speed.

Features and function：

1. Suit to all kinds of rigid boxes positioning process;
2. Suit to all kinds of hard cover positioning process;
3. Parameter adopts computer digital setting;

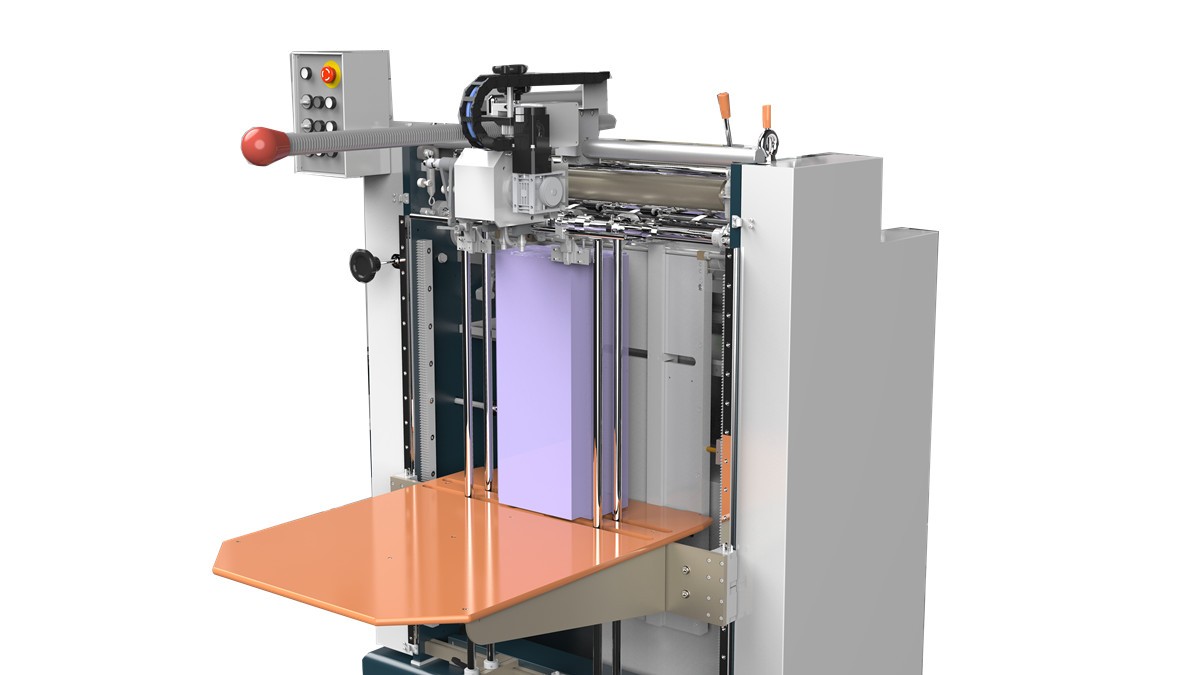

4. Automatic feed paper;
5. Adopts servo motor control system;
6. Spotter by camera tracing system and SCARA (Selective Compliance
Assembly Robot Arm)；(Details please check the note)
7. Multiple cardboard positioning function (optional);

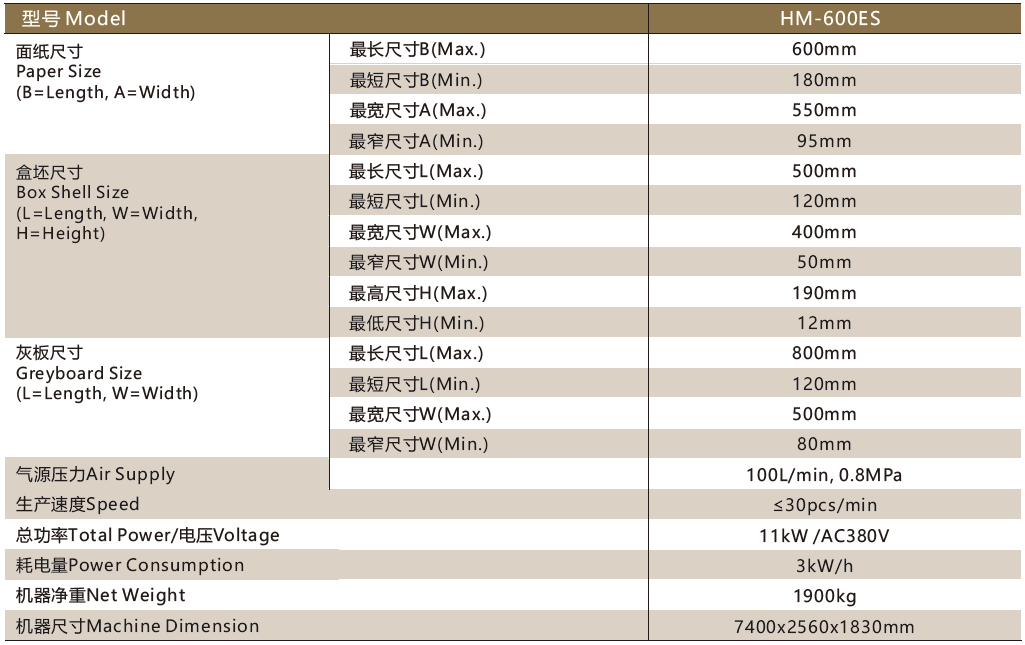

Technical parameters:
