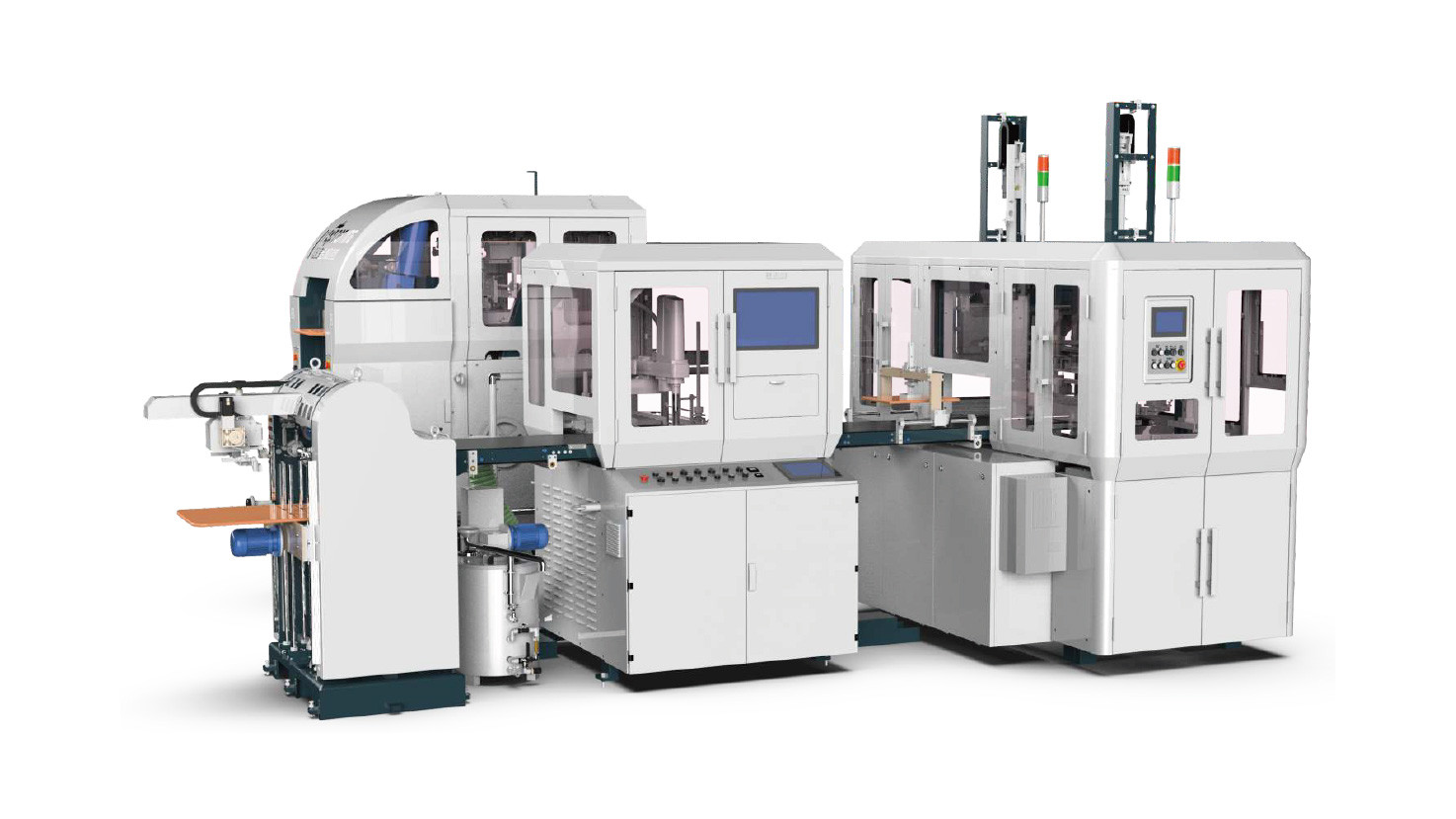

HM-CX3525D Automatic Rigid Box Machine

HM-CX3525D Automatic Rigid Box Machine

Functional description：

   HM-CX3525D Automatic Rigid Box Machine with Double Wrapper, which suitable for medium-size premium
boxes in mass production. It is suitable to make various types of rigid boxes such as jewelry boxes, mobile phone
boxes, gift boxes, cosmetic boxes, watch boxes, etc. Its maximum length 350mm and maximum width 250mm,Size
range is bigger, more suitable for current packaging market. Machine's appearance is new design which is safer and
more beautiful.

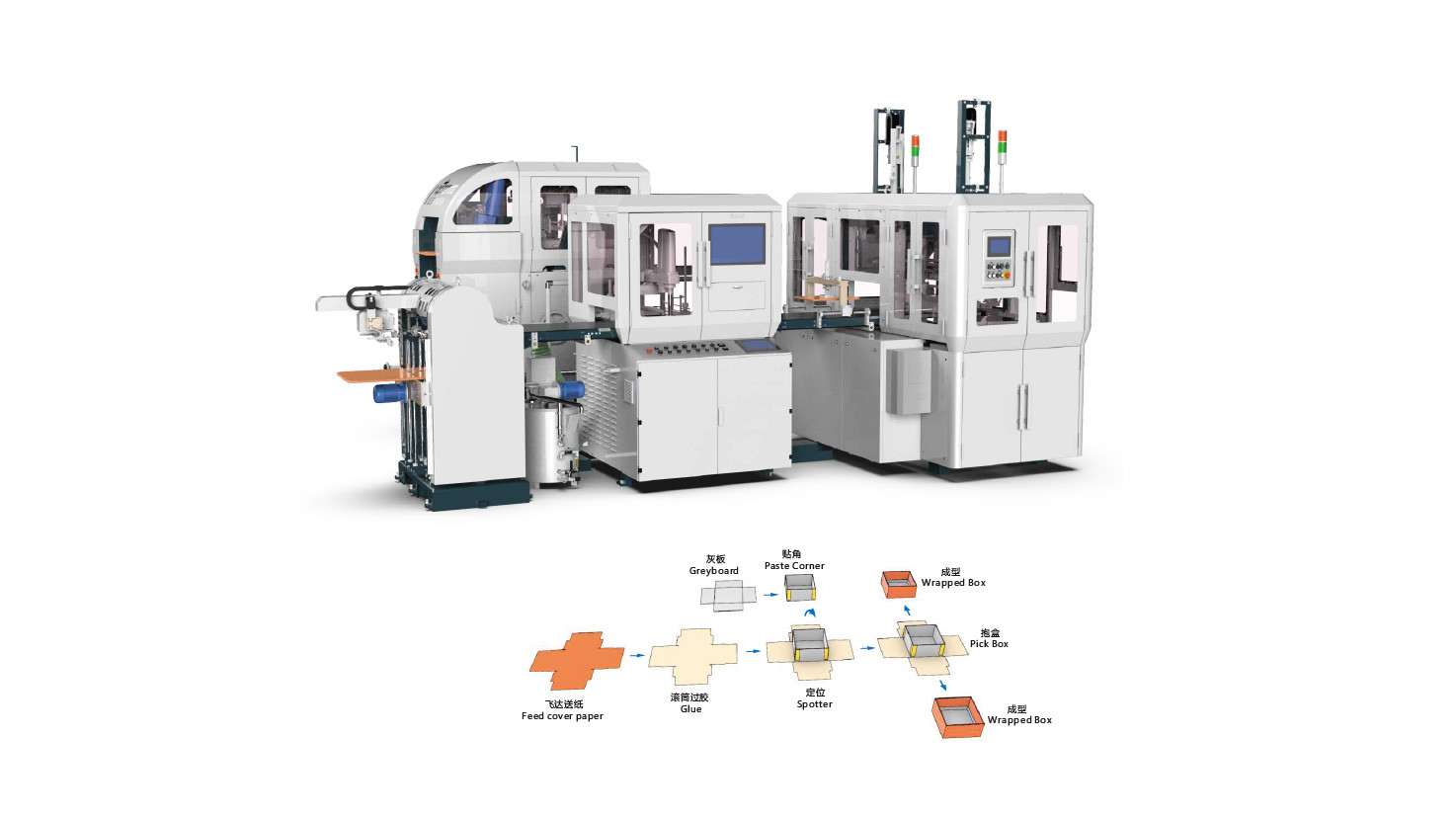

HM-CX3525D adopts PLC and man-machine control, camera tracing system, and can automatically feed cover
paper, feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form box.

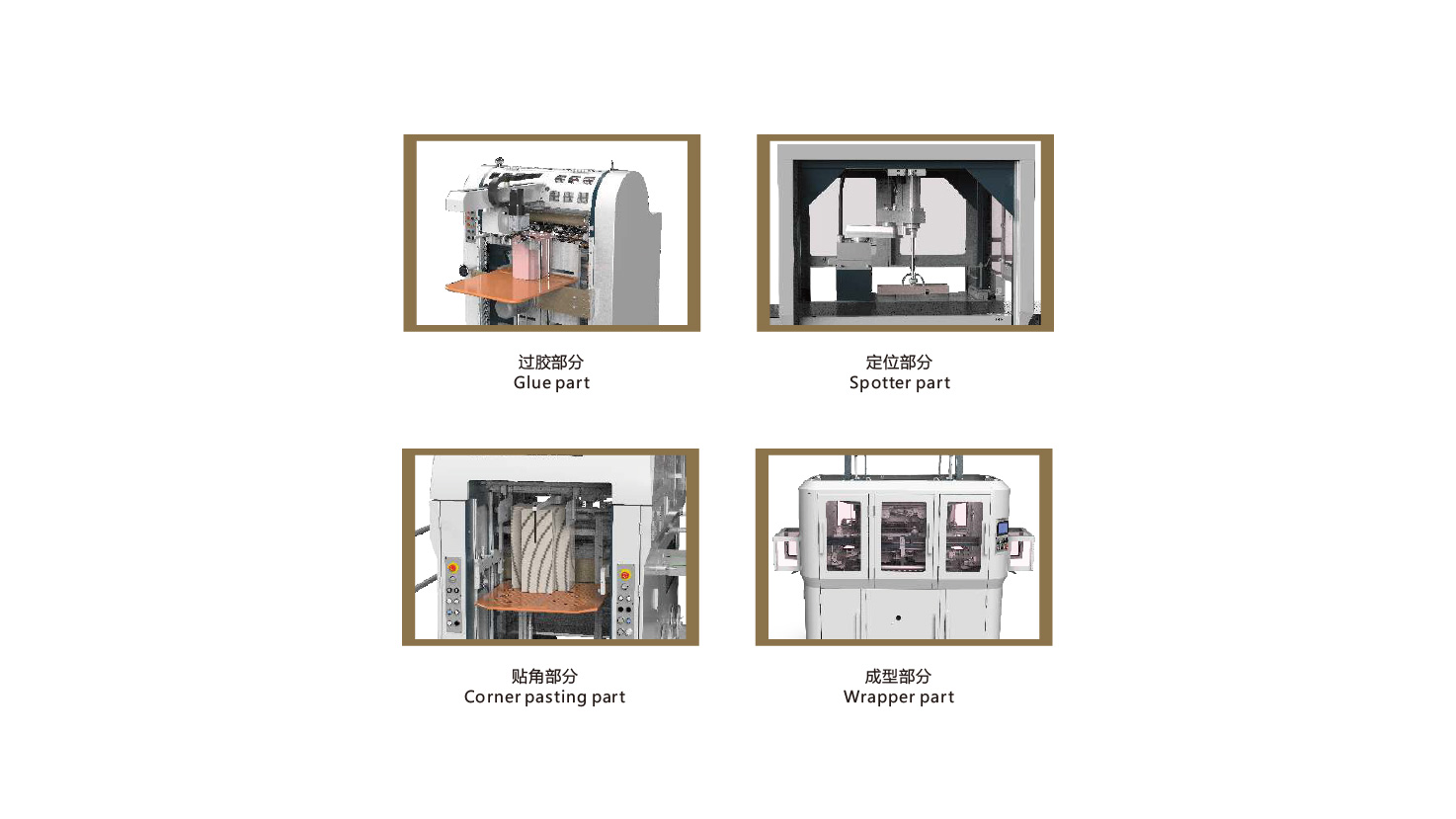

The feeder, the gluer and the conveyor are driven by servos, the machine has continuously variable transmission
and enjoys high accuracy, easy adjusting, and less time consumption. The spotting unit adopts camera tracing system
and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm. The forming unit
employs Japan THK linear slider and virtual cam driving system, guaranteeing the stable quality and fluent movement
and enlarge the folding-in depth and corner edges.

Features and function：

1. Suit to all kinds of rigid boxes in mass production;
2. Double-station pneumatic forming; (Details please check the note)
3. Size change Manual adjust；
4. The long side and short side are layered and formed;
5. Parameters adopts computer digital setting ;
6. Auto error stop and display;
7. Automatic feed paper and greyboard;
8. 24-hour glue timing heating function;
9. Wrapper can input 300 product formulas;
10. The corner heating is independently controlled by a four-channel microcomputer
temperature control module;
11. Multifunctional Robot Vision Image Positioning System；(Details please check the
note)
12. Wrapper can automatic lift and wrap box; (Details please check the note)
13. Automatic control system for glue viscosity(optional)；(Details please check the
note)
14. Digital setting with memory system(optional)；(Details please check the note)
15. Main Slider and pull mold section synchronized; (Details please check the note)
16. Bottom mould use Piston type；(Details please check the note)
17. The box-out direction is parallel to the main conveyor belt;

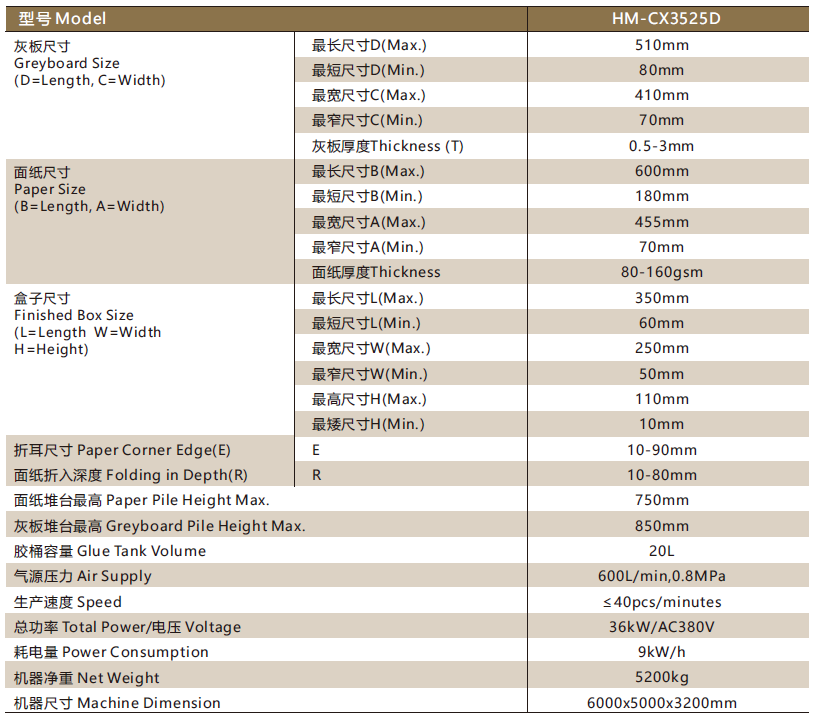

Technical parameters:

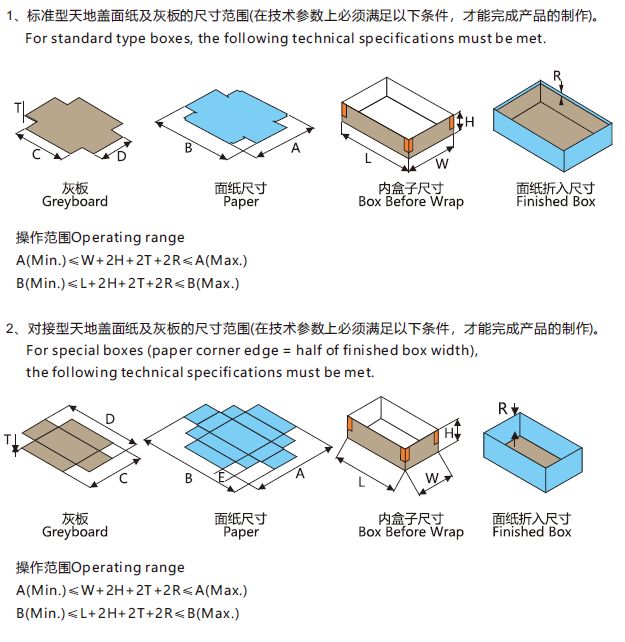

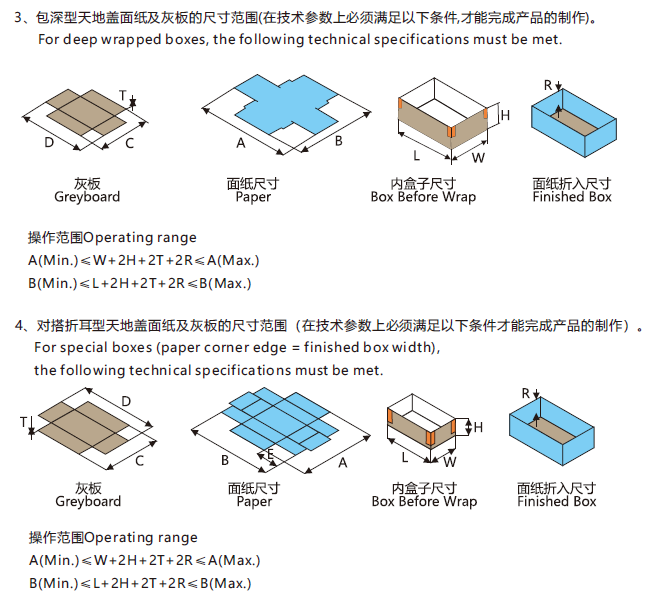

1、The Finished Box Max. sizes are determined by paper size.
A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2、 Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3、If finished box height is 110mm,the length>80mm;when the length <80mm,the finished box height≤90mm
4、The production speed of the rigid box machine is determined by the box size, the paper and the greyboard materials.
5、Seller doesn't provide air compressor. (8atm=0.808MPa, 7.5kW compressor is needed).
