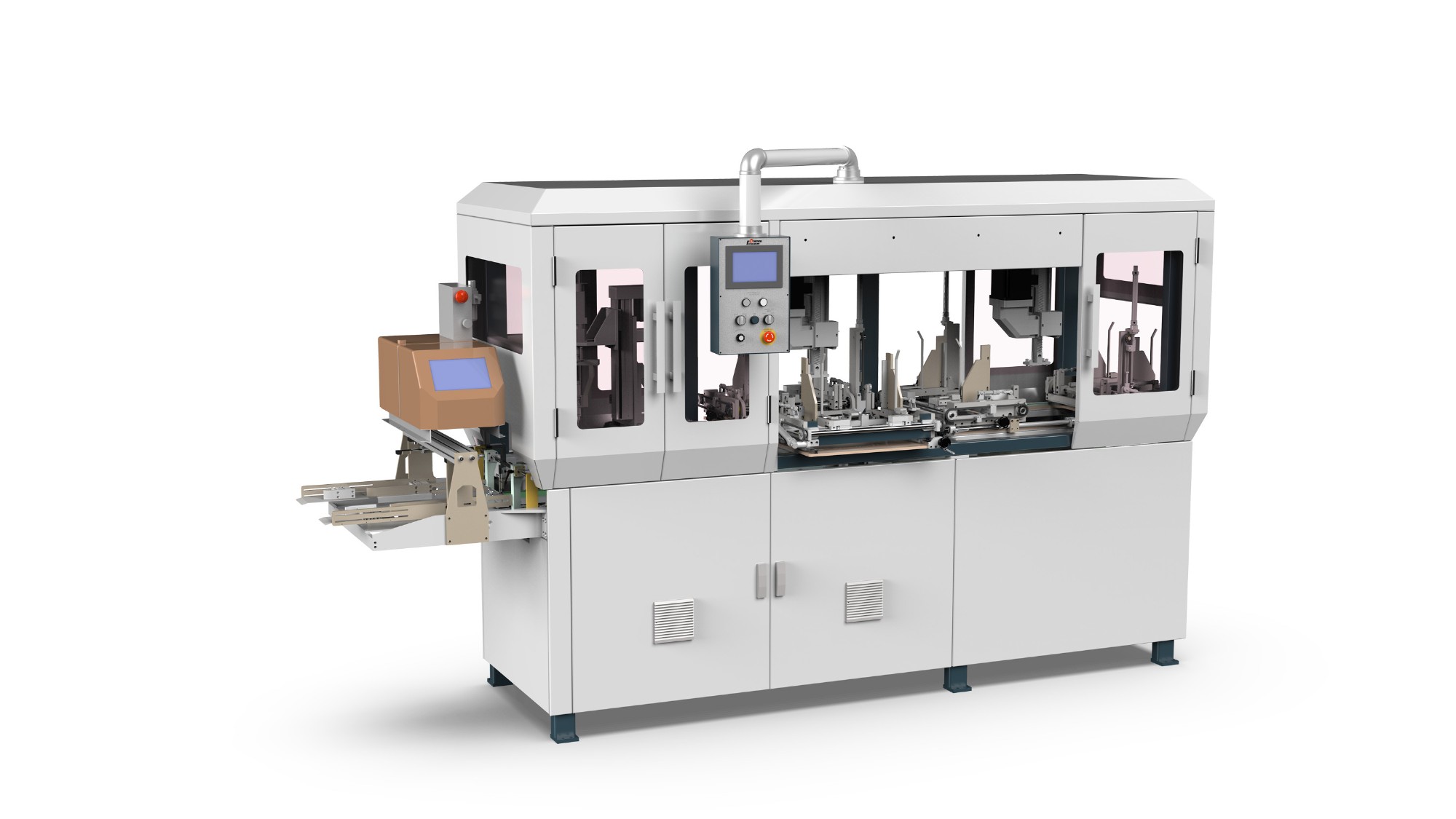

HM-WT4232 Automatic Frame Assembling Machine

Description :

HM-WT4232 Automatic Frame Assembling Machine is an automatic equipment for assembling the frame process of the premum boxes. It is suit to make various types of frame rigid boxes for mass productions, such as smart mobile phone boxes, ornaments boxes, gift boxes, cosmetic boxes, watch boxes,etc. It applies bigger size range which is more suitable for current packaging market. Machine's appearance is new designed which is safer and more beautiful.

HM-WT4232 adopts servo control system and automatic positioning system. It can automatically spray glue, spot greyboard, feed greyboard, lift boxes, stick side frame and form box.The glue spray and the conveyor are driven by servos which have continuously variable transmission, with high accuracy, easy adjusting, and less time consumption. The new hook box system replaces the traditional conveyor belt mode, and it can make the transmission more precise and smoothy and saves time, which is Hongming's patent. The feeder unit adopts a new type of flap structure, which is accurate, smoothy and fast. The side frame unit adopts self-developed rotary folding into the secondary pressing structure to achieve a more uniform edgefit and a flatter appeearance.

Features and function:

1.Suit for all kinds of side frame boxes in mass production;

2.Auto error stop and display

3.Automatically feed paper

4.24-hours control for glue pre-heating

5.Adopt Panasonic servo control system

6.Forming unit adopts a secondary pressing mechanism
