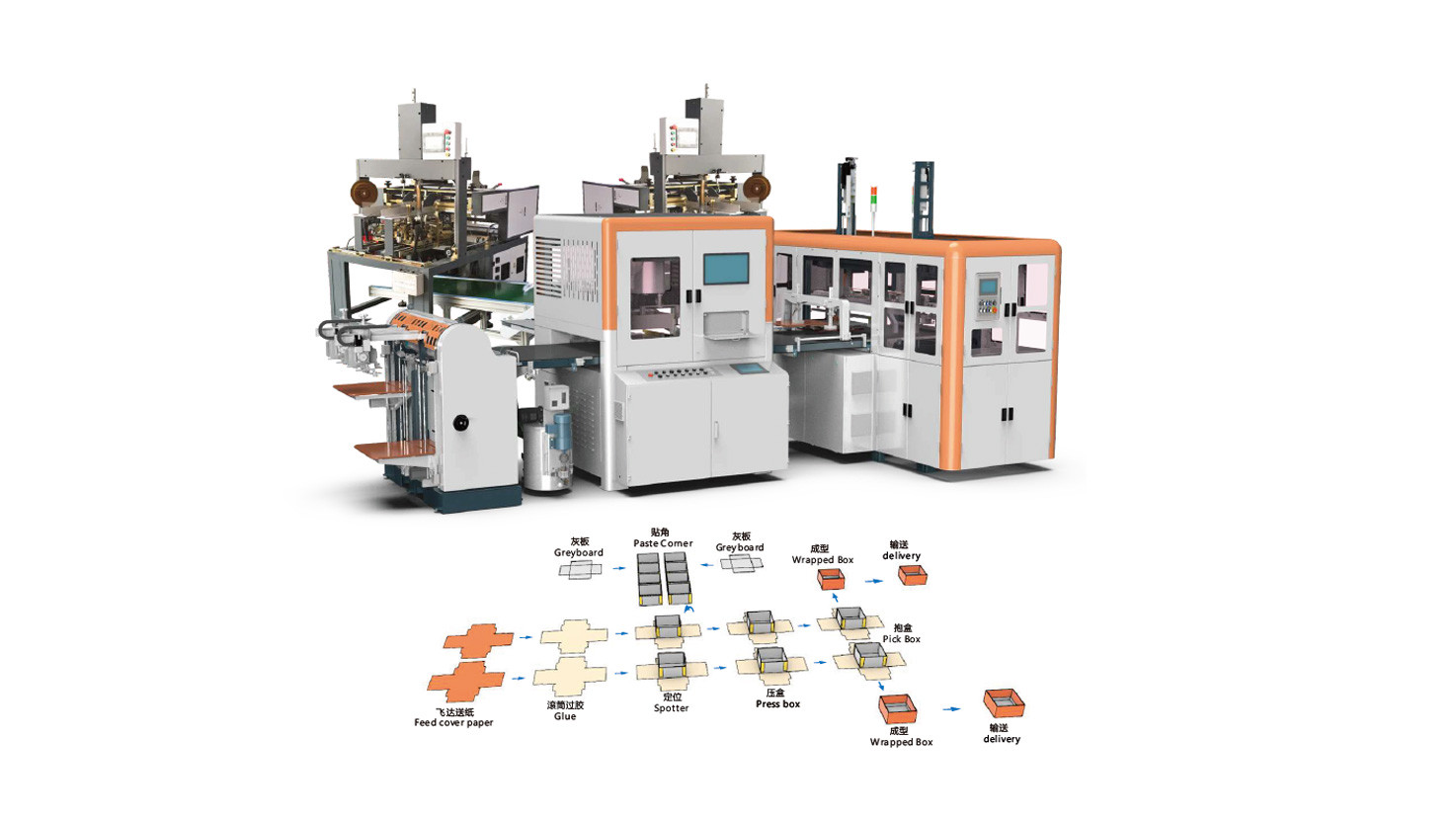

HM-DP4030M Automatic Rigid box machine

HM-DP4030M Automatic Rigid box machine

Functional description：

   HM-DP4030M Automatic rigid box machine is suitable to make various big size premium boxes, A dual-channel
automatic rigid box machine designed to highlight high-speed production., such as mobile phone boxes, jewelry boxes,
cosmetic boxes, watch boxes, etc. Size range is bigger, more suitablefor current packaging market. Machine' appearance is
new design which is safer and more beautiful.
This machine adopts servo control system and image positioning system to realize automatic completion of paper
feeding, gluing, gray board feeding, four corner pasting, positioning, box holding, edge wrapping, ear folding and folding
forming.
Servo drives of well-known brands are used in the feeder, gluing and conveyor belts, which can be infinitely variable,
high-precision, easy to adjust, and save time; the positioning part uses image positioning systems and robots to grab parts
to improve positioning accuracy and efficiency, and the error range can reach ±0.05mm, and the positioning and debugging
speed is faster; the forming machine adopts THK linear guide rail and virtual electronic cam drive, which is more stable and
wear-resistant, and the movement is smoother, and the size range of folding depth and folding ear length is also larger.

Features and function：

1. Suitable for all kinds of rigid box automatic production line;
2. Setting of all computer function parameters;
3. Auto error stop and display;
4. Automatically feed paper and greyboard;
5. 24-hour glue timing heating function;
6. Wrapper can input 300 product formulas;
7. Servo system for controlling the whole machine;
8. Spotter by camera tracing system and SCARA (Selective Compliance Assembly
Robot Arm)(positioning accuracy±0.05mm)；
9. wrapper can automatic lift amd wrap box；

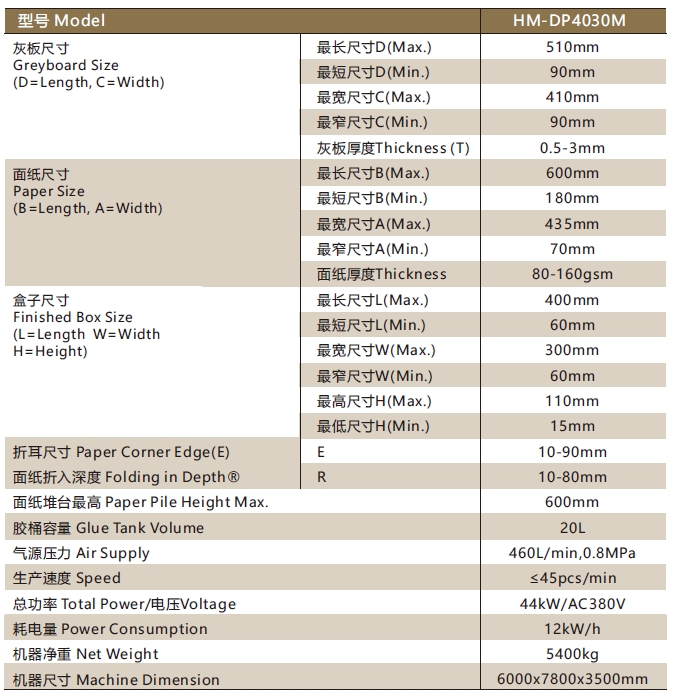

Technical parameters:
