HM-TZ420 Hinged Neck Rigid Box Assembly Machine

Name of commodity：HM-720 White Glue Machine
Phone：

This Semi-auto Case Makre is the earliest in China which is dedicated to free workers from total manual work on bookcase making, and during 15 years it has gained great success and praise

TAG: Automatic rigid box making machine, rigid box line, rigid box making machine, Set up box machine, cardboard box machine, mobile phone box machine Automatic rigid box machine cardboard box machine paper box machine cosmetic box machine

Product Display

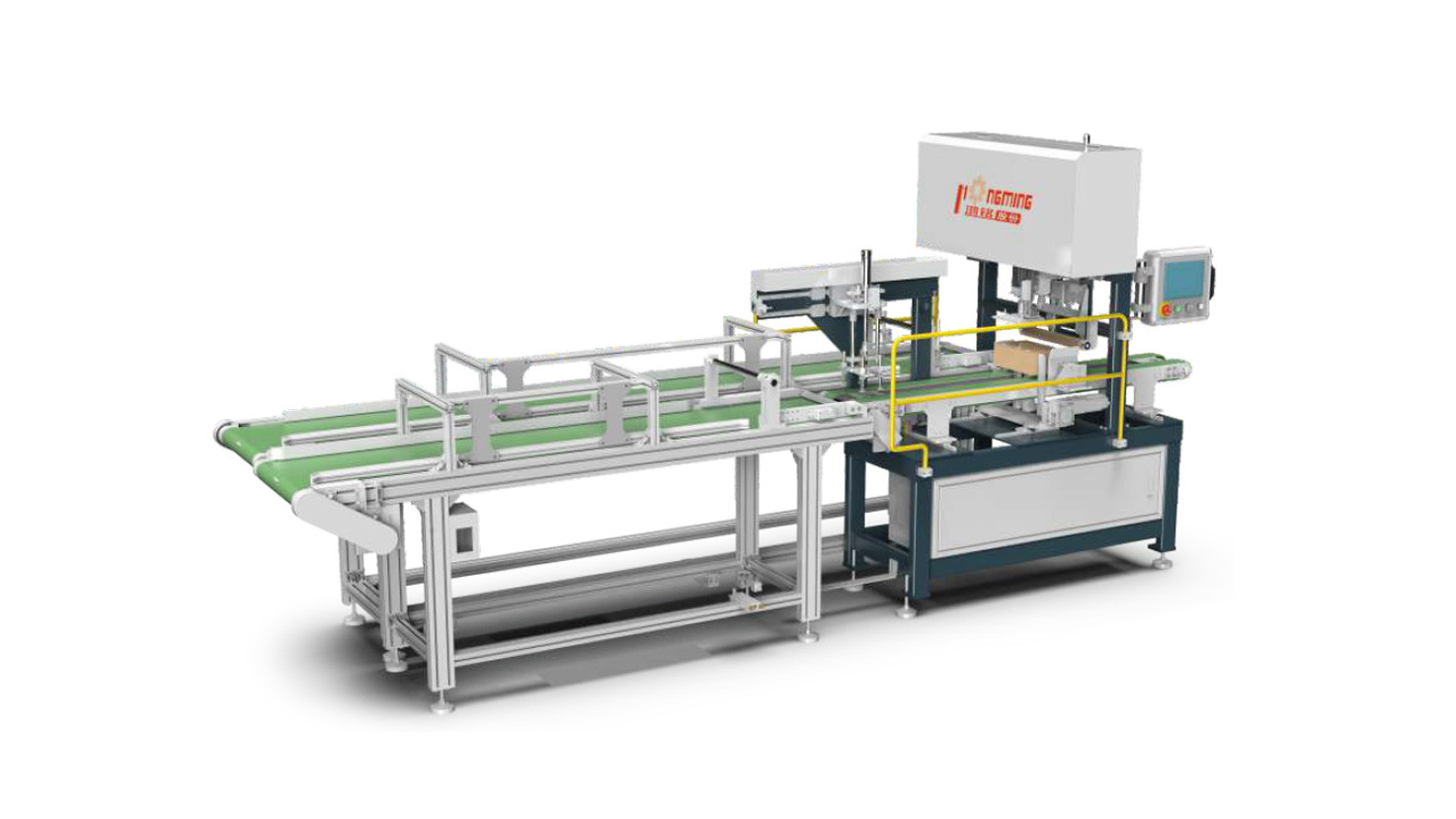

HM-TZ420 Hinged Neck Rigid Box Assembly Machine

Functional description：

HM-TZ420 Hinged Neck Rigid Box Assembly Machine, it's one semi-automatic equipment
for Hinged neck rigid box assembly

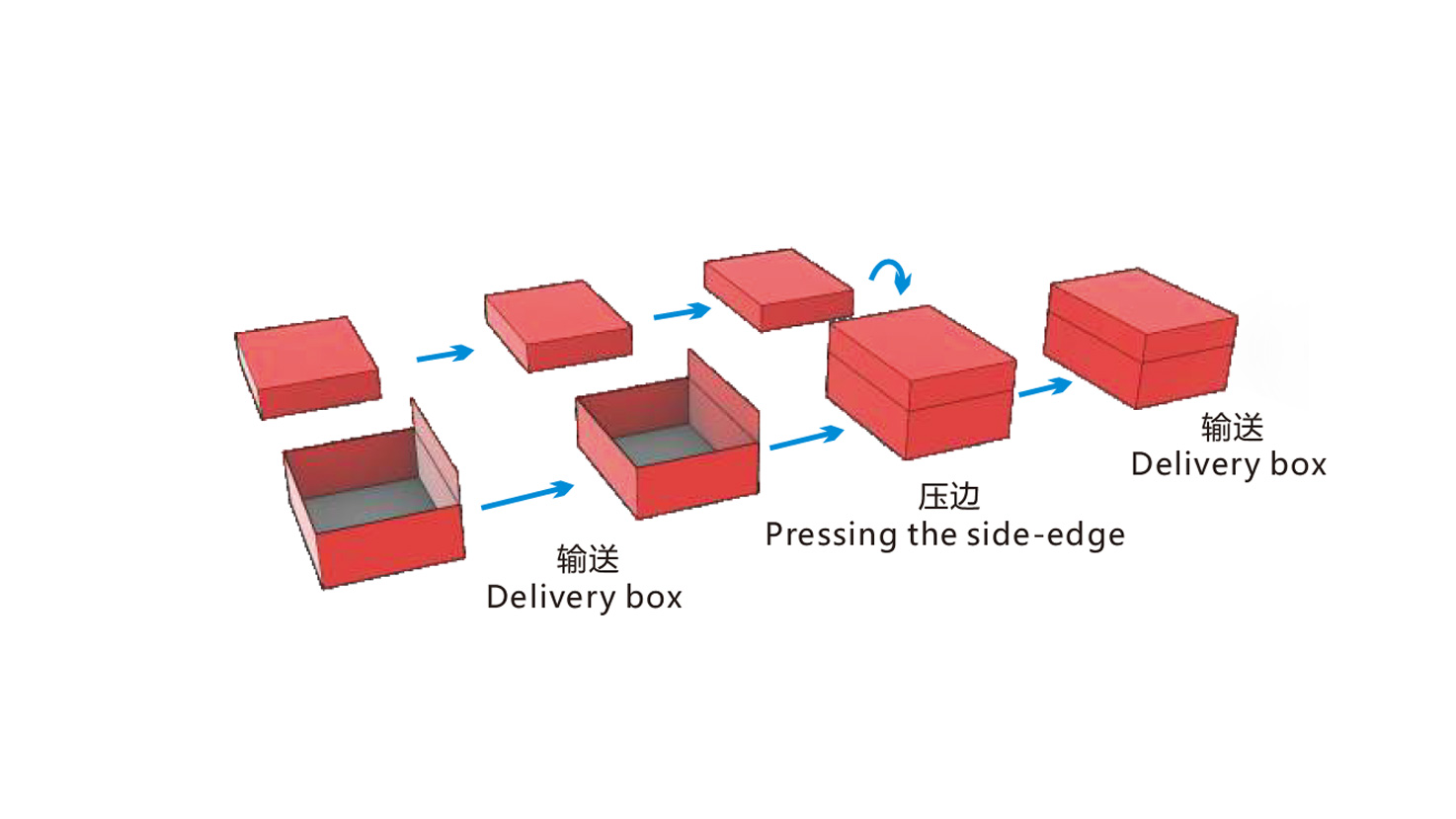

The machine adopts two conveyor belts to transport the top and bottom box
respectively, the topand bottom box positioning respectively, and then combine together;
the roller brush hinged-neck side paper, and then send the box working mode. The
operation is simple, stable and efficient, the whole machine is controlled by PLC, and the
working parameters are set by touch screen.

Features and function：

1. Machine have double delivery line working mode, one is for top box delivery line, the other is
for bottom box delivery line;
2. Station one : bottom box position calibration；
3. Station two: top box position calibration；
4. Station three: Top and Box combine together, than brush the hinged-neck side paper, then
delivery out；
5. The whole machine adopts PLC automatic control, and the touch screen human-machine
interface sets working parameters;

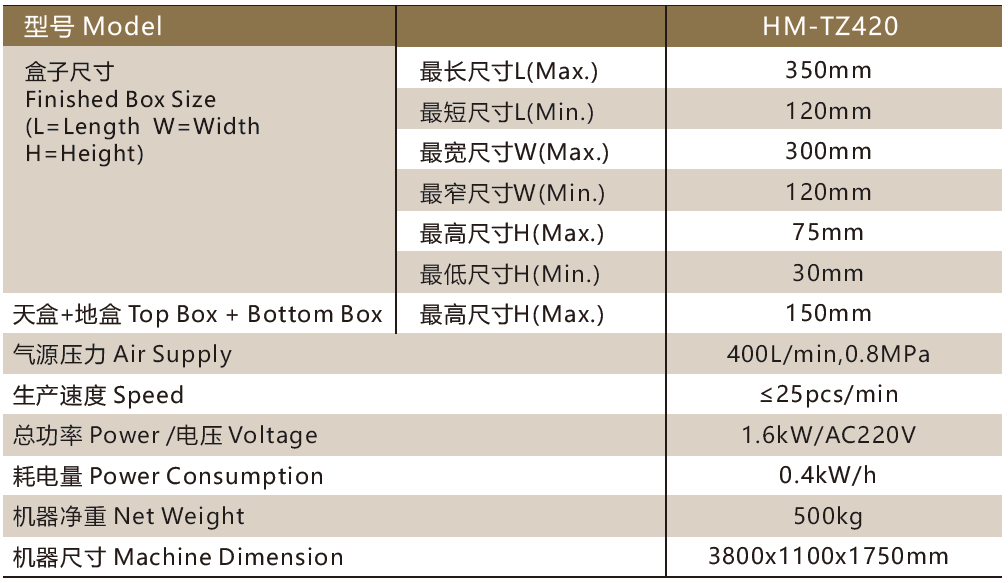

Technical parameters:
