HM-600M-X Glue and spotter machine Description:
HM-600M-X Glue and spotter machine is suitable for the positioning process production of various rigid box
machine.
This machine adopts PLC, robot and touch screen man-machine control system, high-speed scanning and

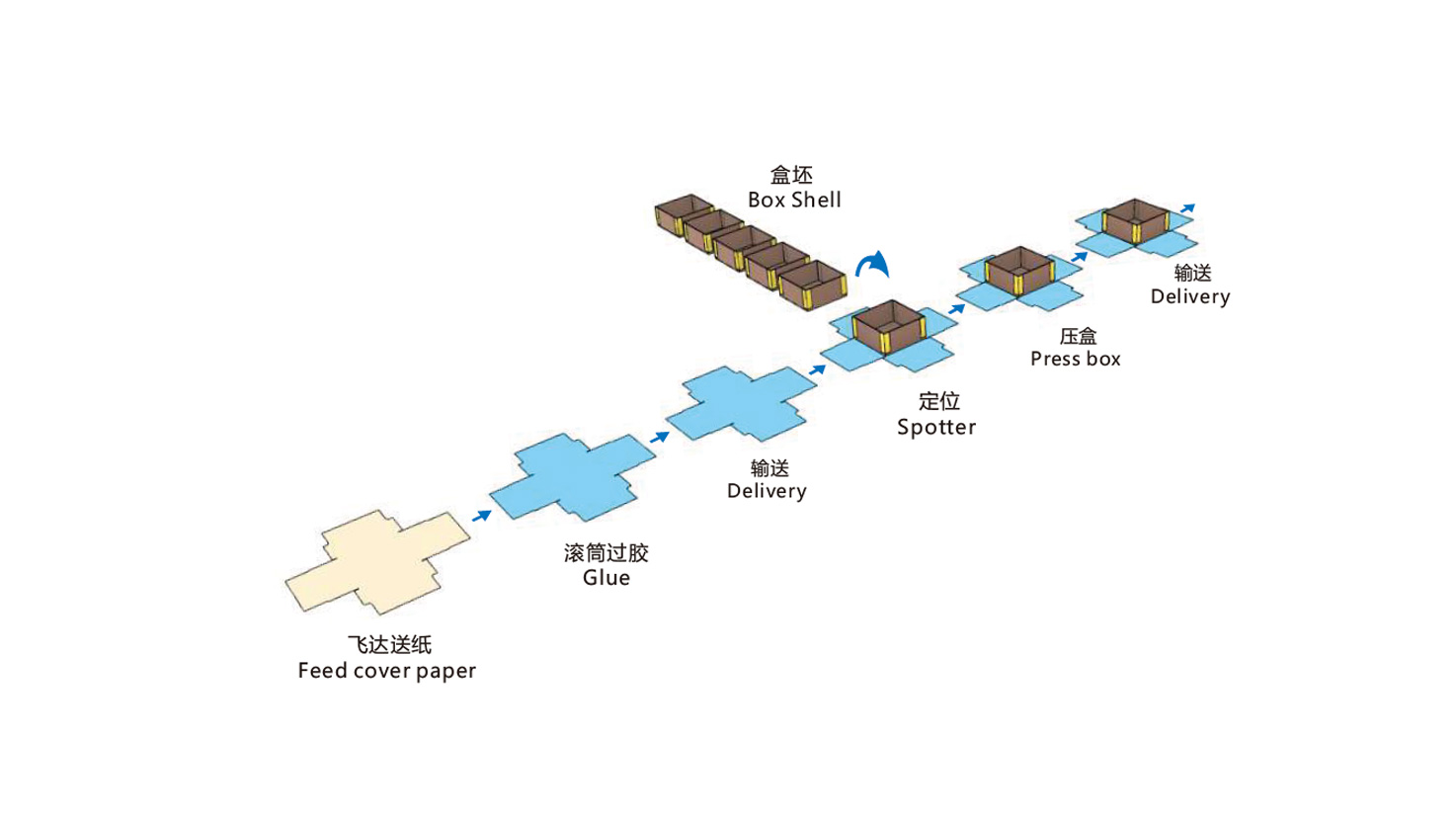

positioning system, and realizes automatic completion of feeding, gluing and positioning. The positioning part adopts
the method of servo synchronous belt module + optical fiber moving scanning surface paper, which improves the
positioning accuracy and efficiency, and the error range is 0.1-0.2mm.
Features and function:
1. Suit to all kinds of rigid boxes positioning process;
2. Auto error stop and display;
3. Automatic feed paper;
4. 24-hour glue timing heating function;
5. Adopts servo motor control system;
6. Robot grabs;
7. Servo control + moving fiber scanning positioning;
8. Automatic control system of glue viscosity (optional); (Details
please check the note)

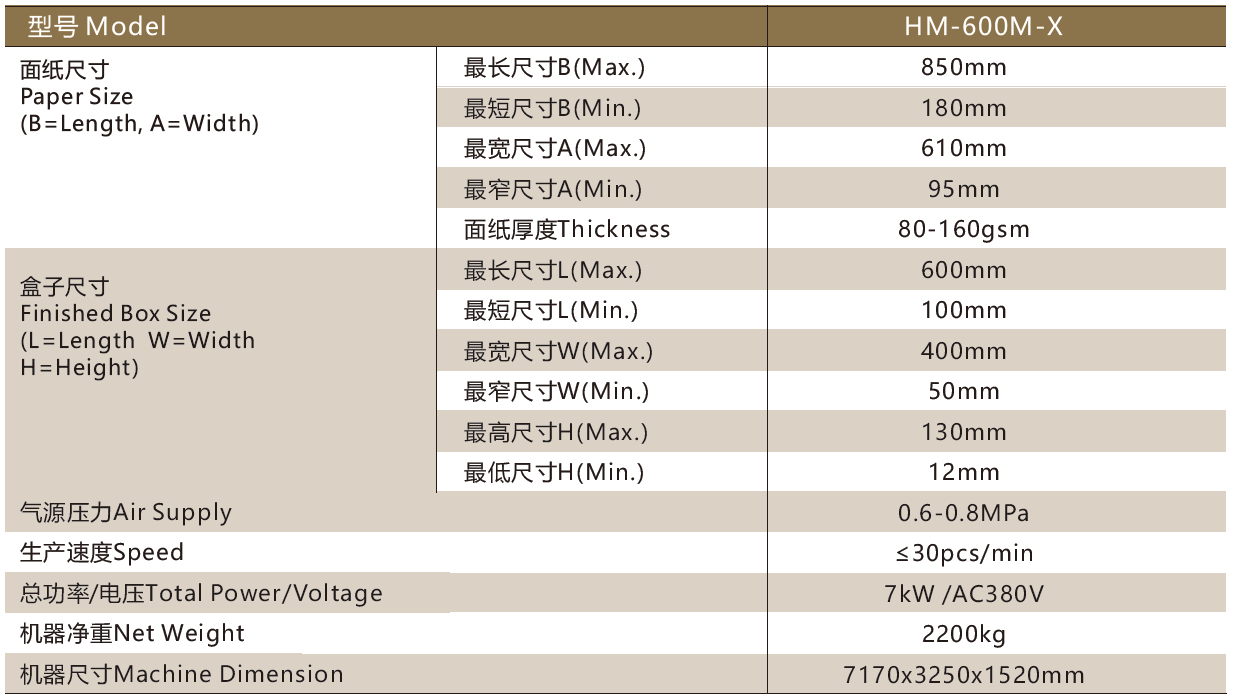

Technical parameters:
