HM-600H Automatic Gluing and Spotter Machine

HM-600H is an automatic multifunctional equipment for high precision
positioning of hard cover and large-size premium box.
HM-600H is for large size hard cover for glue positioning and lining
(see technical parameters ).

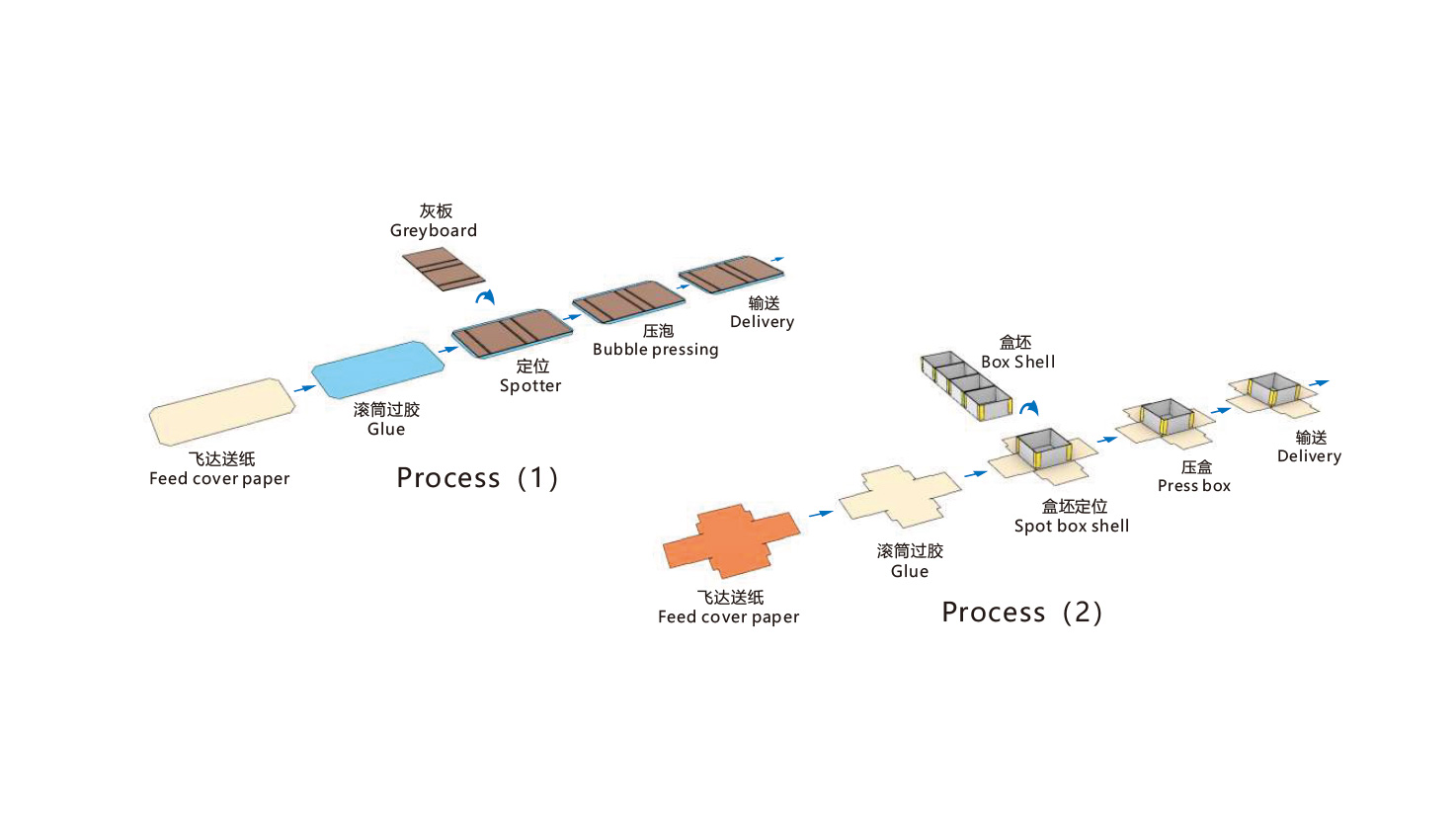

This machine adopts PLC, servo, touch screen, and CCD positioning
system, which all enable the machine to feed paper, glue paper and spotter
the box automatically and fluently.
The feeder, the gluer and the conveyor are driven by servo system
which has continuously variable transmission and enjoys high accuracy,
easy adjusting, and efficiency. The spotting unit adopts camera tracing
system and robot arm to pick and spot the greyboard, enhancing the
spotting accuracy to±0. 05mm.

Features and function:

1. Suit to all kinds of rigid box for positioning;
2. Suit to all kinds of hard cover for positioning ;
3. Computer control for all parameter setting;
4. Auto error stop and display;
5. Automatic feed paper;
6. 24-hour glue timing heating function;
7. Adopts servo motor system ;
8. Spotter by camera tracing system and SCARA (Selective Compliance
Assembly Robot Arm);(Details please check the note)
9. Automatic control system of glue viscosity (optional); (Details please
check the note)
10. Arc conveyor for box shell (optional);
11、Lining (optional);

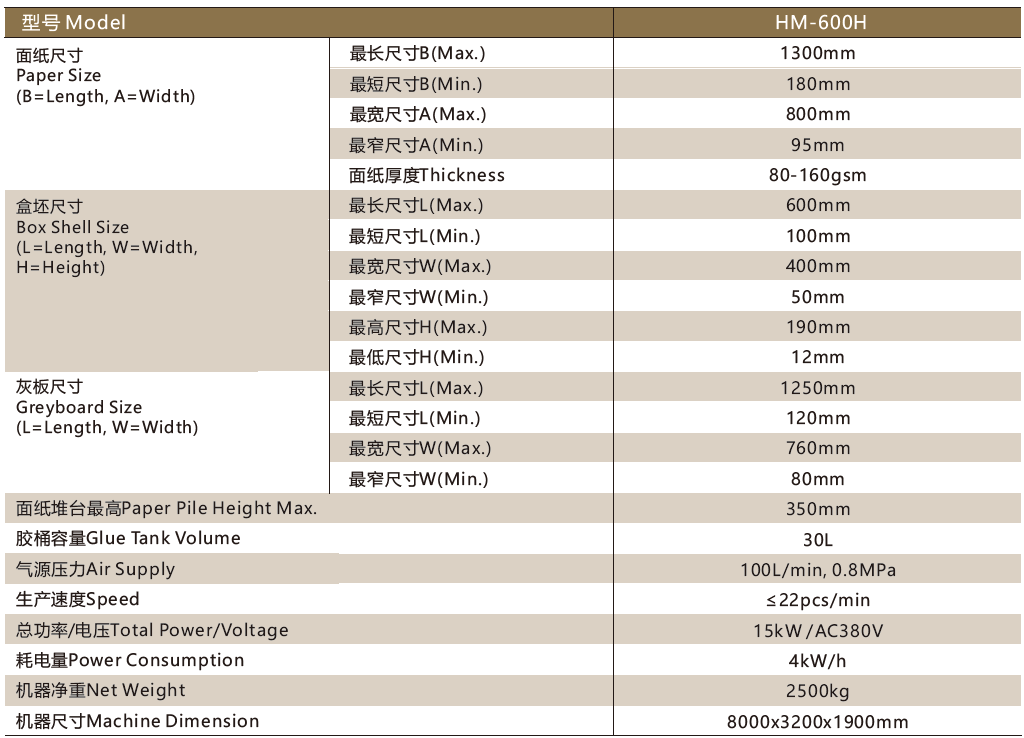

Technical parameters:


1、The card paper size is determined by its size and quality.
2、The production speed is determined by the paper quality, the box shell size/quality and cardboard size/quality.




TAG:   Automatic rigid box making machine, rigid box line, rigid box making machine, Set up box machine, cardboard box machine, mobile phone box machine
