HM-DP6545A/HM-DP6545B Automatic Rigid Box Machine

HM-DP6545A/HM-DP6545B Automatic Rigid Box Machine

Functional description：

  HM-DP6545A Automatic Rigid Box Machine which designed for digital setting, It is suitable to make various
types of boxes for mass production, such as mobile phone boxes, gift boxes, cosmetic boxes, watch boxes, etc.
Size range is more bigger, more suitable for current packaging market. Machine's appearance is new design
which is safer and more beautiful.

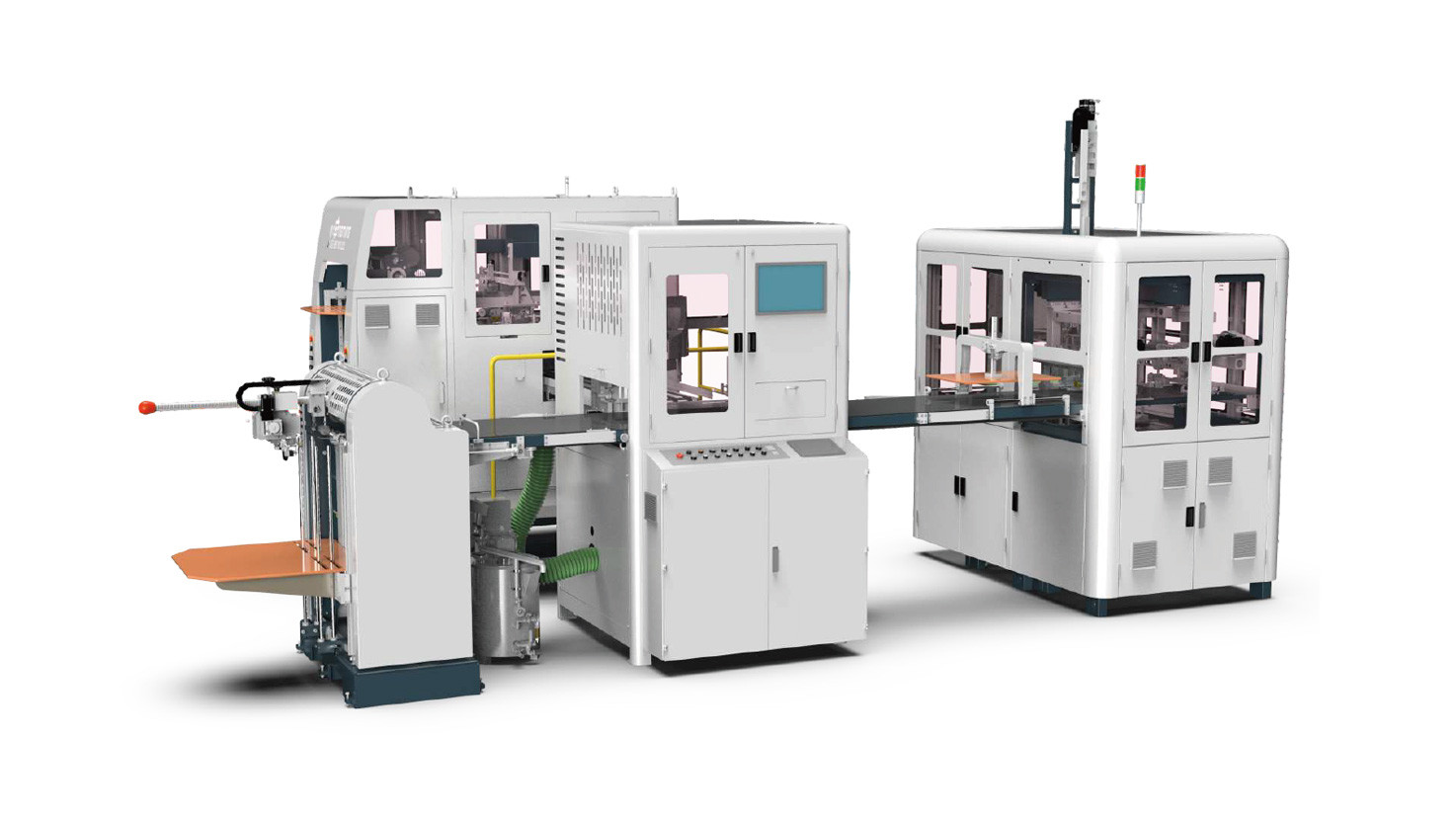

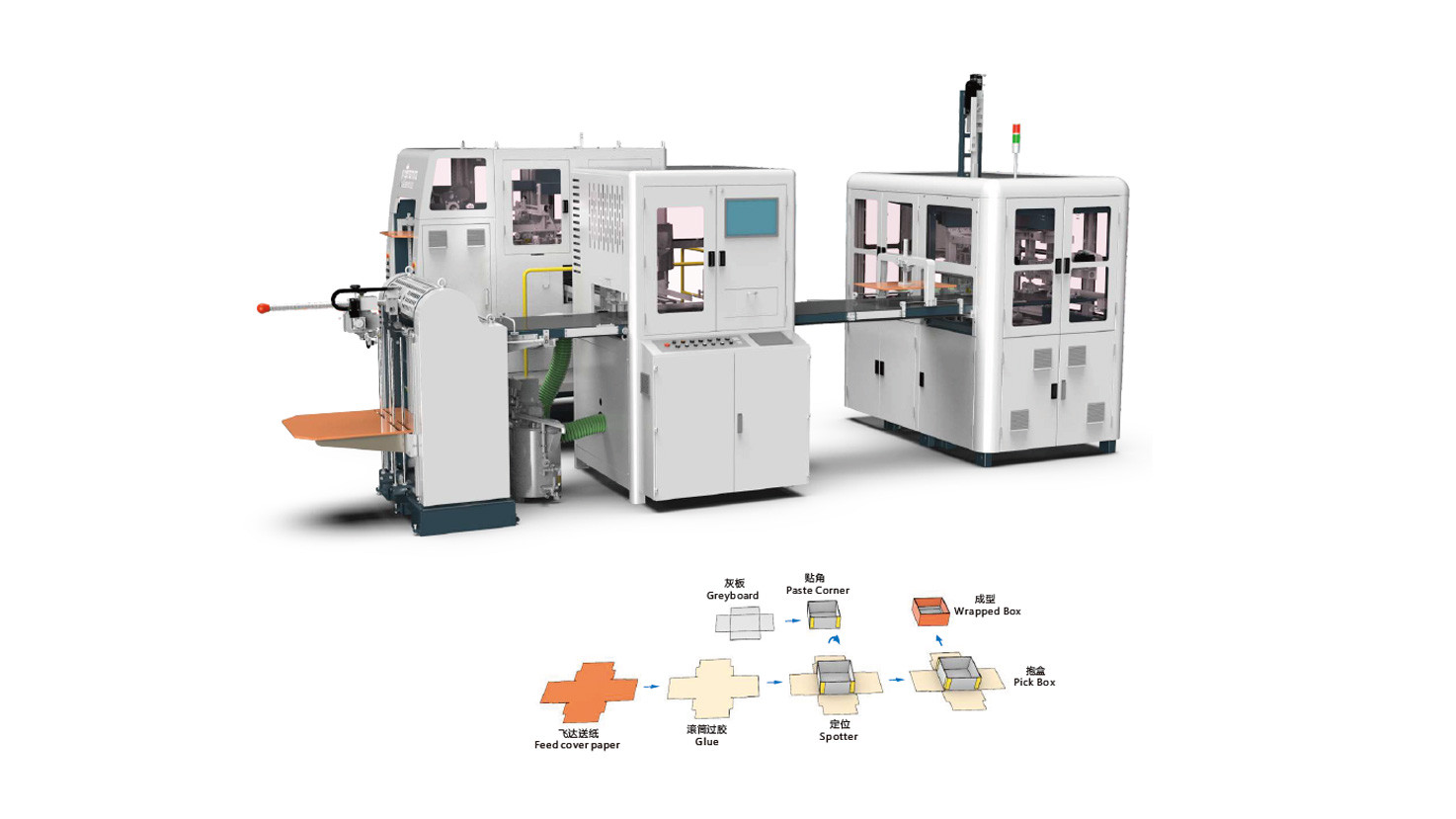

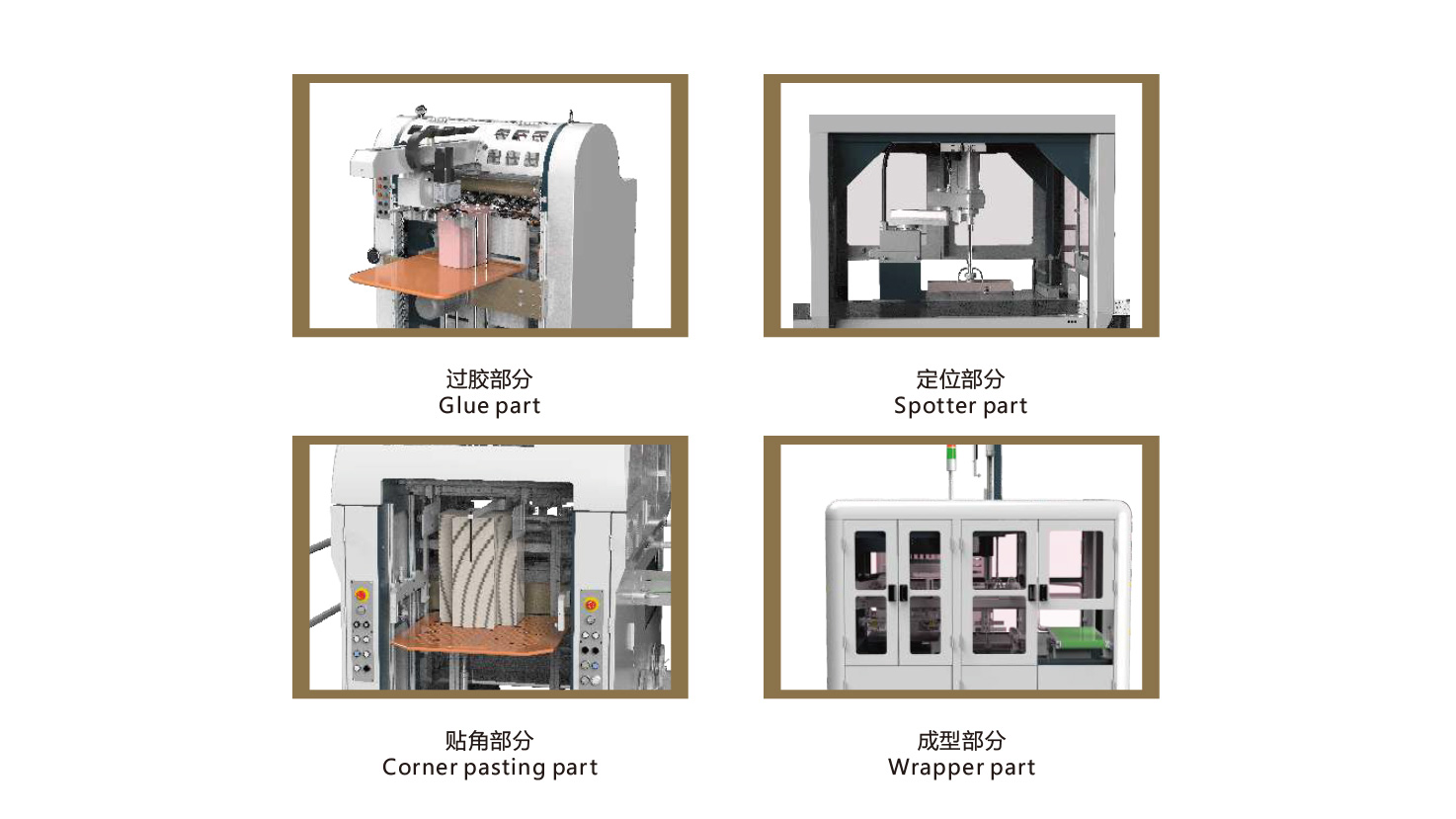

HM-DP6545A adopts PLC and man-machine control, camera tracing system, and can automatically feed
cover paper , feed greyboard, paste four corners, spot greyboard, lift box, wrap box, fold corner edges and form
box.
The feeder, the gluer and the converyor are driven by well known servos which have continuously variable
transmission, and enjoys high accuracy, easy adjusting, and efficienay. The spotting unit adopts camera tracing
system and robot arm to pick and spot the greyboard ,enhancing the spotter accuracy to ± 0.05mm，and its
spotting and adjusting is more faster. The forming unit employs Japan THK linear slider and virtual electronic
cam driving system, guaranteeing the stable quality and fluent movement and enlarge the folding-in depth and
corner edges.

Features and function：

1. Suit to all kinds of rigid boxes in mass production;
2. Single Wrapper;
3. Parametric intelligent adjustment;
4. The long side and short side are layered and formed; (A)
5. Long and short sides are wrapped in the same layer; (B)
6. The cam box can participate in motion control as a whole; (Details please check
the note)
7. The box-out direction is parallel to the main conveyor belt;
8. Parameter adopts computer digital setting;
9. Auto error stop and display;
10. Automatically feed paper and greyboard;
11. 24-hour glue timing heating function;
12. Wrapper can input 300 product formulas;
13. Corner pasting part with independent man-machine control and heating
system; (Details please check the note)
14. Multifunctional Robot Vision Image Positioning System (spotting inaccuracy
±0.05mm); (Details please check the note)
15. Wrapper can automatic lift and wrap box；(Details please check the note)
16. Automatic control system for glue viscosity (optional); (Details please check the
note)
17. Bottom mould use Piston type；(Details please check the note)
18. Main Slider and pull mold section synchronized; (Details please check the note)

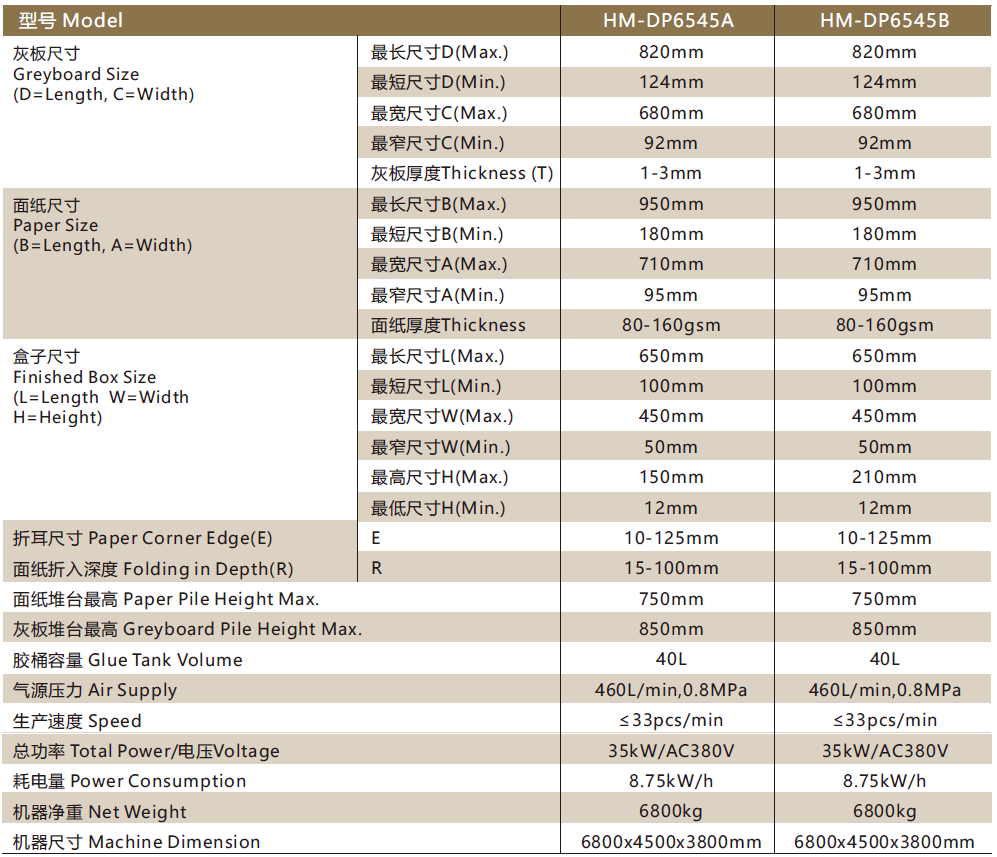

Technical parameters:

Note:

1、The Finished Box Max. sizes are determined by paper

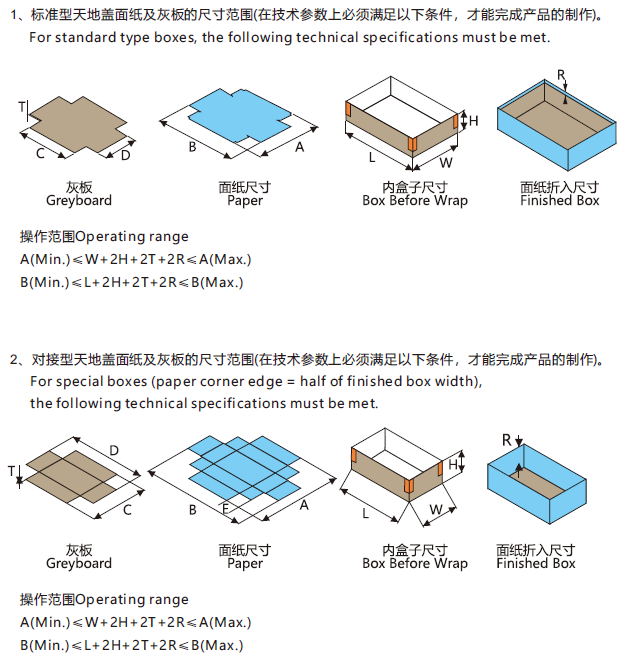

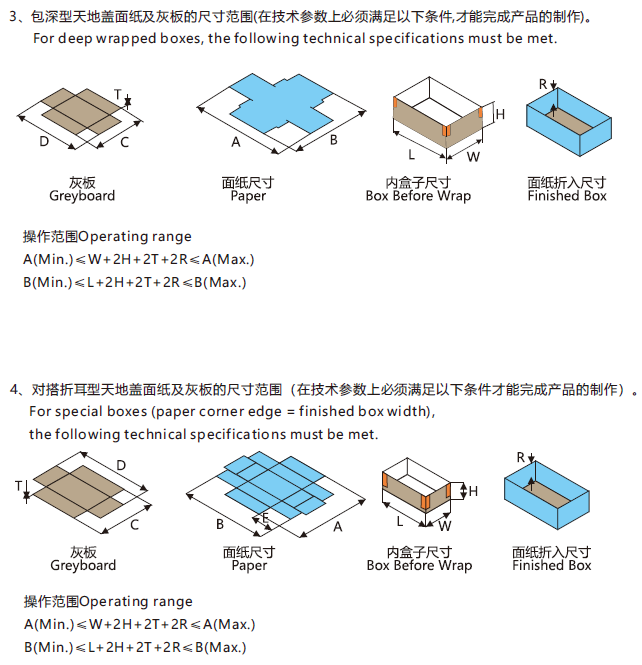

size.A(Min.)≤W+2H+2T+2R≤A(Max.); B(Min.)≤L+2H+2T+2R≤B(Max.)
2、Either the Max. Sizes or the Min. Sizes can not be fulfilled on the same box.
3、The production speed of the rigid box machine is determined by the box size,
the paper and the greyboard materials.
4、Seller doesn't provide air compressor.
(8atm=0.808MPa, 7.5kW compressor is needed)
