This Semi-auto Case Makre is the earliest in China which is dedicated to free workers from total manual work on bookcase making, and during 15 years it has gained great success and praise

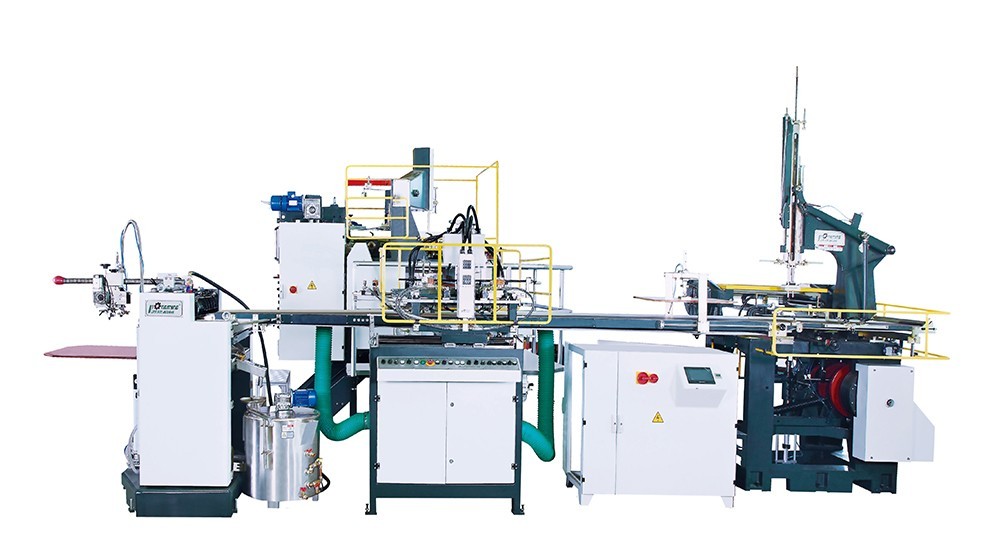

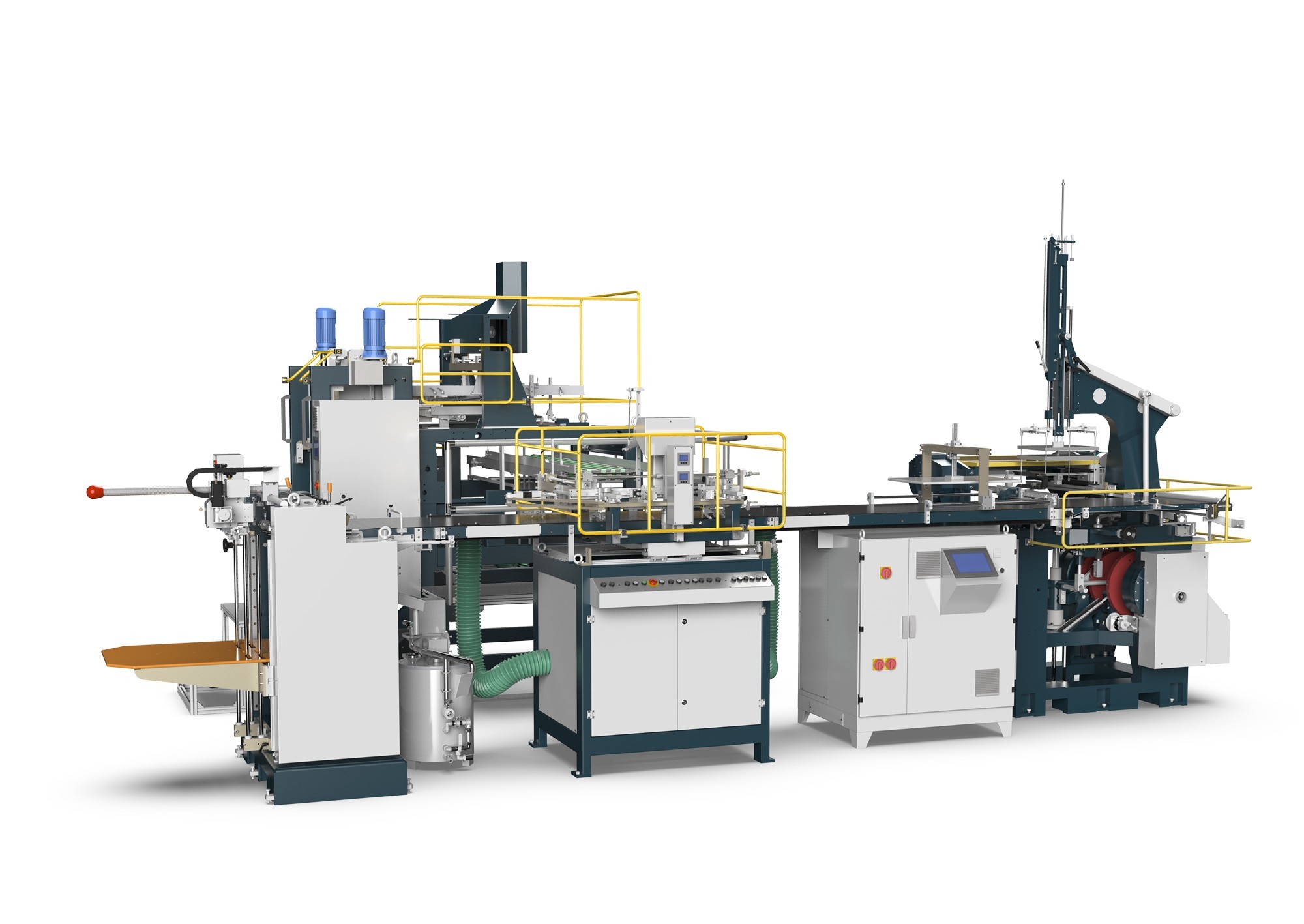

HM-ZD600 Automatic Rigid Box Making Machine
HM-ZD600 Automatic Rigid Box Making Machine is the very first fully auto box machine by our company, specializing in mass producing every kinds of big rigid boxes, such as shoe box, cellphone box, shirt box, toy box, tea box, book type box, etc.
This machine adopts Japanese Panasonic PLC and man-machine control, electric eye tracing system, hydraulic pneumatic rectifying system, and can automatically feed coverpaper, feed greyboard, paste four corners, spot greyboard, drag box, wrap box, fold corner edges and form box.
The feeder, gluer and conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting, and less time consumption. Double color conveyor can save the time for changing to other color belt, which is Hongming’s patent. The spot unit adopts Switzerland micro throttle valve, lead-screw for rectifying, enhancing the spotting accuracy to within 0.2mm. The forming unit employs foreign linear slider, guaranteeing over 10 years stable quality.
This whole machine only needs 1 or 2 operators and outputs about 1500-1800 boxes/hour.
1.Suit to all kinds of rigid boxes in mass production;
2.Employ Japanese Panasonic PLC and man-machine control to automatically form boxes in one process;
3. Computer control with error auto stop and display;
4. Automatically feed paper and greyboard;
5. 24-hours control for glue pre-heating;
6. Automatically cut and heat tape to paste the greyboard box’s quad stayer (four corners), with independent man-machine control;
7. Spotter by electric eye tracing system and hydraulic pneumatic rectifying system to spot correctly (spotting accuracy ≤0.2mm);
8. Conveyor by vacuum suction fan to keep the glued paper from deviating;
9. Wrapper can automatically and continually deliver box, wrap paper, fold corner edge, fold in and form box;
10. Remodel for irregular boxes and plastic boxes (optional);
11. Automatic control system for glue viscosity(optional).
Technical Parameters:
Model | HM-ZD600 | |
Paper Size B=Length, A=Width | A(Max.) | 610mm |
A(Min.) | 95mm | |
B(Max.) | 850mm | |
B(Min.) | 180mm | |
Thickness | 80-160gsm | |
Finished Box Size | L(Max.) | 600mm |
L(Min.) | 100mm | |
W(Max.) | 400mm | |
W(Min.) | 50mm | |
H(Max.) | 130mm | |
H(Min.) | 12mm | |
Greyboard Thicnkess | T(Max.) | 3mm |
T(Min.) | 1mm | |
Folding-in Depth | Folding-in Size R | 10-45mm |
Speed | 20-30pcs/min | |
Voltage | AC380V | |
Machine Power | 13kW | |
Heating Power | 4kW | |
Net Weight | 5800kg | |
Machine Dimension | 6800mmx4500mmx3300mm | |
Note:
1. The max. size and the min. size of box are determined by the max. and min. size of paper. A(Min.)<w+2h+2t+2r
2. The production speed of the rigid box line is determined by the box size, paper and greyboard materials.
3. Seller doesn’t provide air compressor. ( 8 atm=0.808mpa, 7.5KW compressor is needed)
